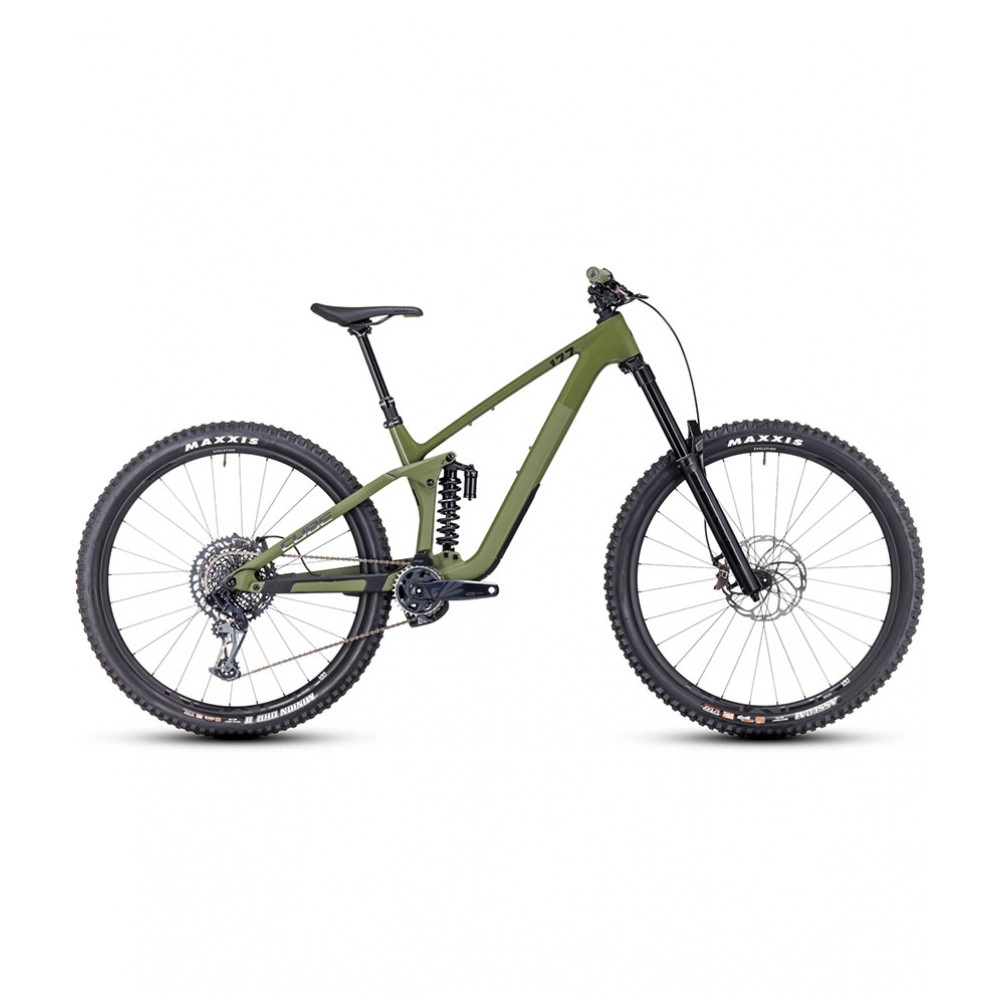

2023 CUBE STEREO ONE77 C:68X TM 29 MOUNTAIN BIKE

It's tough to improve on perfection, but that's what we've done with the new Stereo ONE77 C:68X frame. First up, it's light, at just 2.3kg. That's a difference you can feel on the climbs and descents. There's a flip chip and two mounting points for air and coil shocks, giving a range of options for progression and shock performance. An angle adjustment insert means you can switch between 63.8 and 64.4 head angles and the bottom bracket is threaded for maximum versatility and durability. We deliberately didn't include a frame storage compartment, because we wanted to keep weight down and strength up. But there is a mounting point for a custom trail tool under the down tube. Simply put, you're all set. Bring it on...

SPECIFICATION:
Frame
C:68X Monocoque front and rear triangles with Advanced Twin Mold Technology, molded chainstay and down tube protection
Fork
RockShox ZEB Select+ RC2
Shock
RockShox Super Deluxe Ultimate Coil, 230mm length x 65mm stroke
Hubs
Newmen Evolution SL A.30 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver
Wheels
Newmen Evolution SL A.30, 28 hole, tubeless ready
Wheel Size
29"
Spokes
Newmen Evolution SL A.30 wheelset
Tires
Front: Maxxis Assegai, 3C MaxxGrip compound, EXO+ casing, TR, 29"" x 2.5" WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4" WT
Chain
SRAM SX Eagle, 12-speed
Crank
SRAM GX Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB MTB, 73mm English/BSA threaded
Rear Derailleur
SRAM GX Eagle, 12-speed
Shifters
SRAM GX Eagle, 12-speed
Brakeset
Hayes Dominion A4, 4-piston, 203mm front rotor, 180mm rear rotor, Hayes Dominion A4
Handlebar
Race Face Turbine R, 800mm width, 35mm clamp diameter
Saddle
SDG Bel-Air V3, Lux Alloy rails
Seatpost
SDG Tellis dropper, 31.6mm, Single bolt
Drop:
150mm (MD)
170mm (LG/XL)
Stem
Race Face Turbine R, 35mm bar clamp, Length: 40mm (MD/LG), 50mm (XL/XXL)
Grips
SDG Thrice
Headset
ACROS AZF-675, fiber inserts for angle adjustment, ICR (Integrated Cable Routing), ZS56 upper/lower
Weight
15.1 kg
