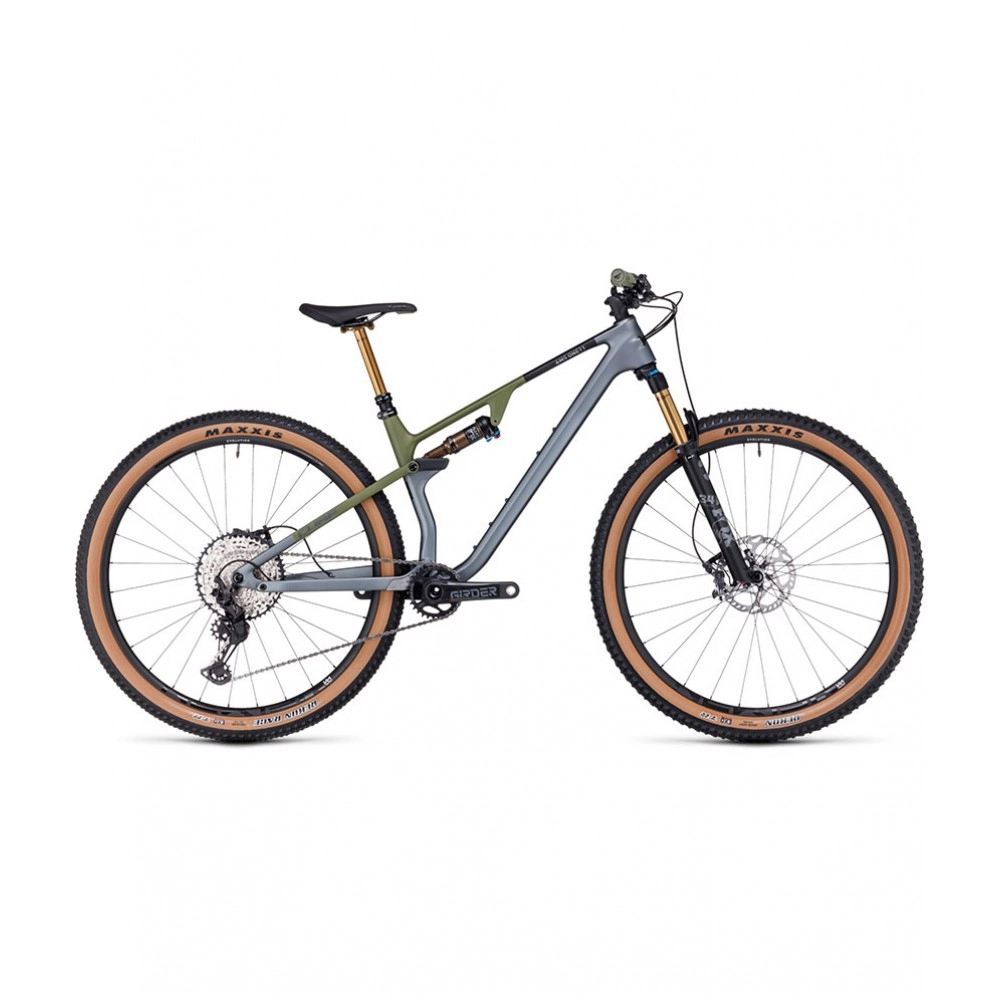

2023 Cube AMS One11 C:68X TM 29 Mountain Bike

11.7 kg
Weight
ACROS Integrated, fiber inserts for 0.6° angle adjustment
Headset
SDG Thrice
Grips
Newmen Evolution SL 318.4, 6° rise, 31.8mm bar clamp, Length: 50mm (SM), 60mm (MD/LG), 70mm (XL)
Stem
150mm (MD-XL)
125mm (SM)
Drop:
FOX Transfer Factory dropper, Kashima coating, 30.9mm, Single bolt, 34.9mm
Seatpost
SDG Bel-Air V3, Lux Alloy rails
Saddle
Newmen Evolution 318.20, 760mm width, 31.8 clamp diameter
Handlebar
Shimano Deore XT, M8120 4-piston front, M8100 2-piston rear, 180mm rotors, Shimano Deore XT M8100
Brakeset
Shimano Deore XT M8100, 12-speed, direct attach mounting bracket
Shifters
Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
Rear Derailleur
Praxis, 92mm press-fit
Bottom Bracket
Praxis Girder Carbon, 170mm length
Crank
Shimano Deore M6100, 12-speed
Chain
Rear: Maxxis Rekon Race, EXO casing, TR, 29" x 2.35"
Front: Maxxis Rekon, EXO casing, TR, 29"" x 2.5"
Tires
Newmen Advanced SL X.A.30 wheelset
Spokes
29"
Wheel Size
Newmen Advanced SL X.A.30, 28 hole, tubeless ready
Wheels
Newmen Advanced SL X.A.30 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Hubs
FOX FLOAT DPS Factory, 3-position compression lever (Open/Medium/Firm) with Open mode adjust, Kashima coating, 190mm length x 42.5mm stroke
Shock
FOX FLOAT 34 Step-Cast (SC) Factory, FIT4 damper, 3-position compression lever (Open/Medium/Firm) with Open mode adjust, Kashima coating
Fork
C:68X Monocoque Carbon front and rear triangles with Advanced Twin Mold Technology
Frame
SPECIFICATION:

When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g. Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there's even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.

2023 CUBE AMS ONE11 C:68X TM 29 MOUNTAIN BIKE
