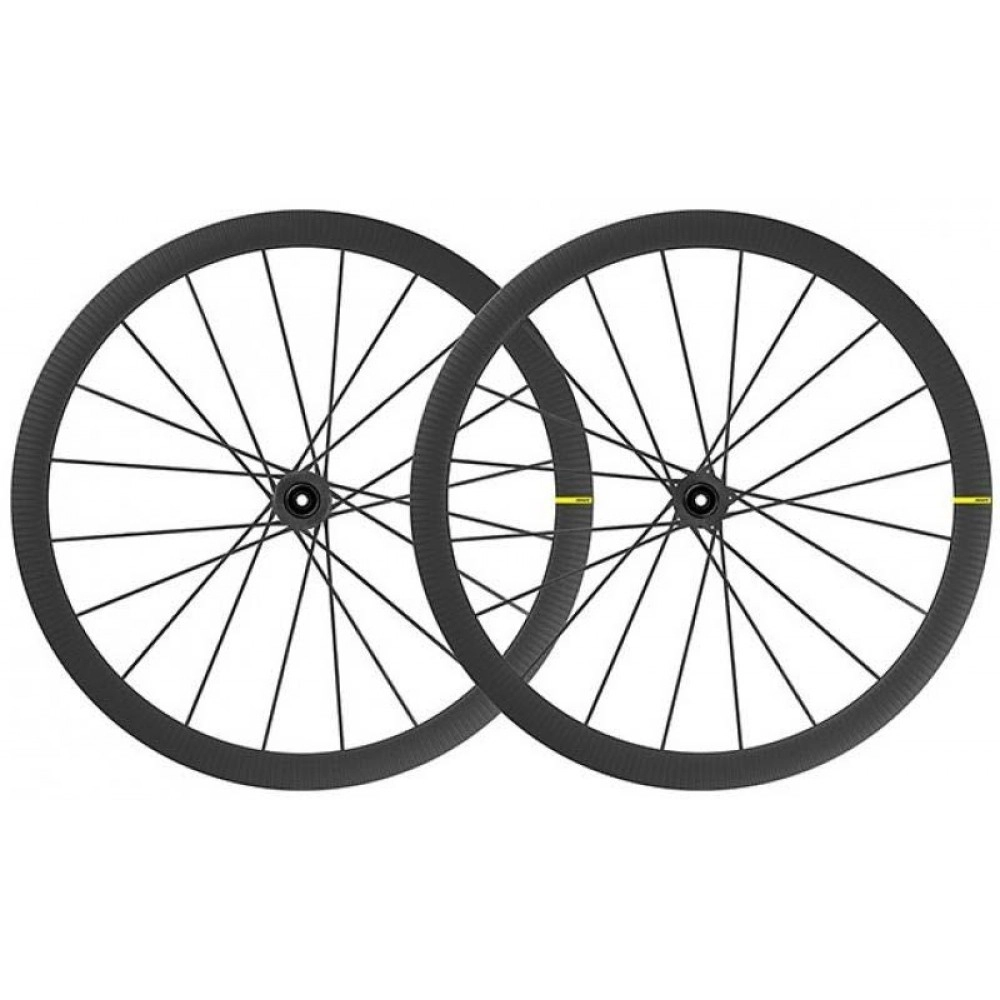

For a true competitive edge and zero compromises, this superlight, disc-brake road racing wheel delivers Formula 1 performance with unrivaled stiffness, aero efficiency and flat-out speed. Ultimate is not just a name, it’s the word we reserve for pinnacle performance. And it’s how we define this wheelset. Cosmic Ultimate is the wheel choice for pro racers seeking a competitive advantage. This tubular tire version sees a major redesign for disc brakes with a new full carbon rear hub, full carbon lacing, ID360 freewheel technology and thru-axle compatibility.

The rim is engineered with a NACA-inspired, full-carbon profile that’s 40mm deep and 25mm wide. It’s made from 12k carbon fibers wrapped over a super rigid foam core. Full-carbon construction means the whole wheel is incredibly light at just 1250g. The 20 super-bladed carbon fiber spokes and high, thin carbon hub flanges offer a proven aero advantage. The spokes are made with unidirectional carbon fibers, so they don’t stretch. The spokes run continuously from one edge of the rim to the other, through the hubs (R2R technology), creating one single spoke instead of two. This adds wheel stiffness and eliminates the need to mechanically attach the spokes to the hub.

The rear rim is asymmetrical to improve its drive-side bracing angle, so spoke tension is balanced and the wheel remains stiff under the heaviest lateral loads such as sprints or attacks. The axles are paired with automatically adjusted sealed cartridge bearings for perfect preload. At the back, the ID360 freewheel system provides instant engagement and low friction. The hubs are thru-axle compatible (12x100 up front and 12x142 at the back) and made for Center Lock brake rotors. These wheels are designed, engineered and patented by Mavic in Annecy, France, and are 100% handmade in our European carbon factory.

KEY BENEFITS

Stiffest wheel system in its class

Full carbon rims

R2R carbon spokes and monobloc construction

Carbon laminated hubs on ID360 freewheel mechanism

Climb, sprint and accelerate faster

Full carbon construction for tubular tires only

40mm deep/26mm wide NACA profile rims for low drag and crosswind stability

Seamless interface between spokes and hubs

Disc-brake compatible in every possible configuration

Font : 12x100, convertible to QR

Rear: 12x142, convertible to 12x135 and QR

XD Road convertible

SPECIFICATIONS

Compatibility

Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.

Rear axle: 12mm thru axle, convertible to Quick Release with included adapters

Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Compatible Adapters and freewheel bodies

ID360 Shimano / Sram freewheel body (LV3430100 - Delivered on the wheel)

ID360 XD-R freewheel body (LV2580100)

ID360 Campagnolo freewheel body (LV3440100)

ID360 Shimano / Sram Light freewheel body (LV3850100)

Weight

Pair without tyre: 1230 grams

Front without tyre: 555 grams

Rear without tyre: 675 grams

Hubs

Infinity Hubs

Front and rear bodies: Carbon

Front: Quick release and 12x100 through axle compatible

QRM Auto bearing preload technology

Rear: Quick Release, 12x142 and 12x135 compatible

Instant Drive 360 freewheel technology

Front hub body: Carbon

Axle material: aluminum

Intended Use

Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2

Recommended tyre sizes: 23 to 32 mm

For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included

ASTM CATEGORY 1 : road only

Rims

Material: 3K carbon fibers

ETRTO size: 28" tubular

Drilling: no holes, spokes molded to the rim

Height: 40 mm

Disc brake specific profile

Tire: tubular

Valve hole diameter: 6.5 mm

Spokes

R2R carbon spoke technology

Material: unidirectional carbon fiber

Lacing: front and rear crossed 2

Count: 20 front and rear

Versions

Freewheel: Shimano/Sram or XD-Road

Disc standard: Center Lock (R) only

Color: Black only

DELIVERED WITH

Rear QR adapters for Instant Drive 360

Front QR adapters

User guide

Computer magnet
