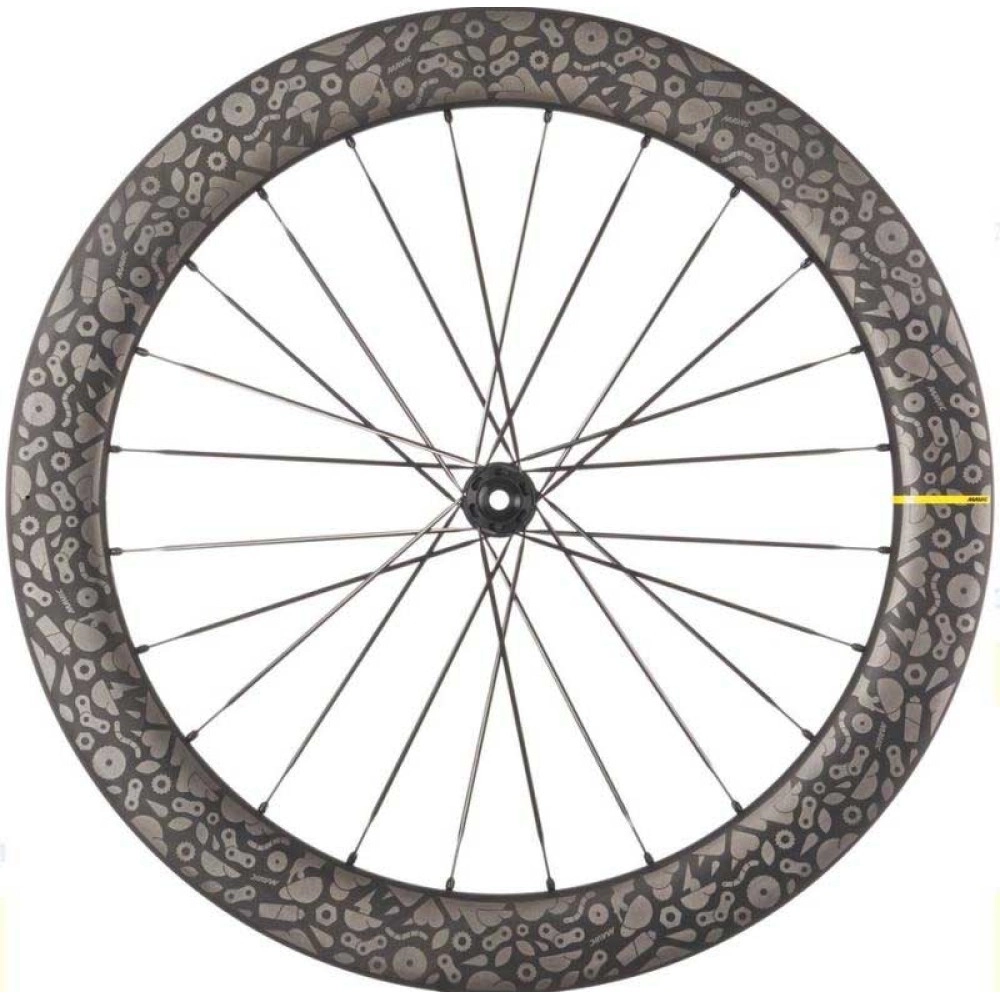

Mavic Cosmic SLR 65 LTD Wheelset

Main features :

Material: 100% carbon fiber with outer layer UD

Material: 100% carbon fiber

Height: 64 mm

Specific profile for disc brakes

Pneumatic: Ust Tubeless and inner tube

Internal width: 19 mm

Etrum measure: 622x19tc

Tubeless technology without Flap Fore Carbon

Tubeless Ust technology

Rays

Material: steel

Form: straight, aerodynamic (elliptical form), double thickness (patented) head

Nipples: Integrated Fore in Aluminum

Number: 24 front and rear

Raggiaura: front and rear crossing in 2nd, without contact

Hubs

Mozzi Infinity

Front and rear body: aluminum

Starting material: aluminum

Technology free wheel instant drive 360

CAUTH CAUTH PRECARIC TECHNOLOGY

Front: compatible with quick locking system and 12x100 pivot

Rear: Quick locking, compatible with 12x142 and 12x135

Mozzo available only with Rotors of the Arrow Center Lock

Versions

Standard Disco: LOCK CENTER ONLY

Free wheel: Shimano/Sram

Compatibility

Free wheel: Shimano/Sram, convertible to Campagnolo Ed11, N3W and XD-R with optional transmission bodies

Rear pin: 12 mm passing pin, convertible into a quick locking system through optional adapters

Front pivot: 12x100 passing pin, easily convertible into a quick locking system with optional adapters. Not compatible with the P

Compatible adapters and free wheel bodies

Front adapter from 12 to 9 mm for quick locking (V2680301)

Rear adapter from 12 to 9 mm with quick release (V2510801 (with V2373401 axis)

Free wheel body ID360 shimano/sram light (V3850101)

Free wheel body ID360 Campagnolo (V3440101)

Free wheel body ID360 xD-R (V2580101)

Free wheel body ID360 Shimano/SRAM (V3430101)

Free wheel body ID360 n3w (V4270101)

Delivered with

Ust accessories and valve

User guide

Intended use

ASTM 2 category: road and off -road vehicle with jumps up to 15 cm

For a longer duration of the wheel, Mavic recommends that the total weight supported by the wheels of the bike does not exceed 120 kg, including bikes

Recommended pneumatic dimension: 25-32 mm

Maximum pressure: see the indication on a wheel and pneumatic. If they do not coincide, use the lower of the two.

Specified weight information

The weight of the wheels is expected to +/- 5%, in the XD/XD-R version and Center Lock, without quick release, valve or flap

Key technologies

Guarantee and maintenance
