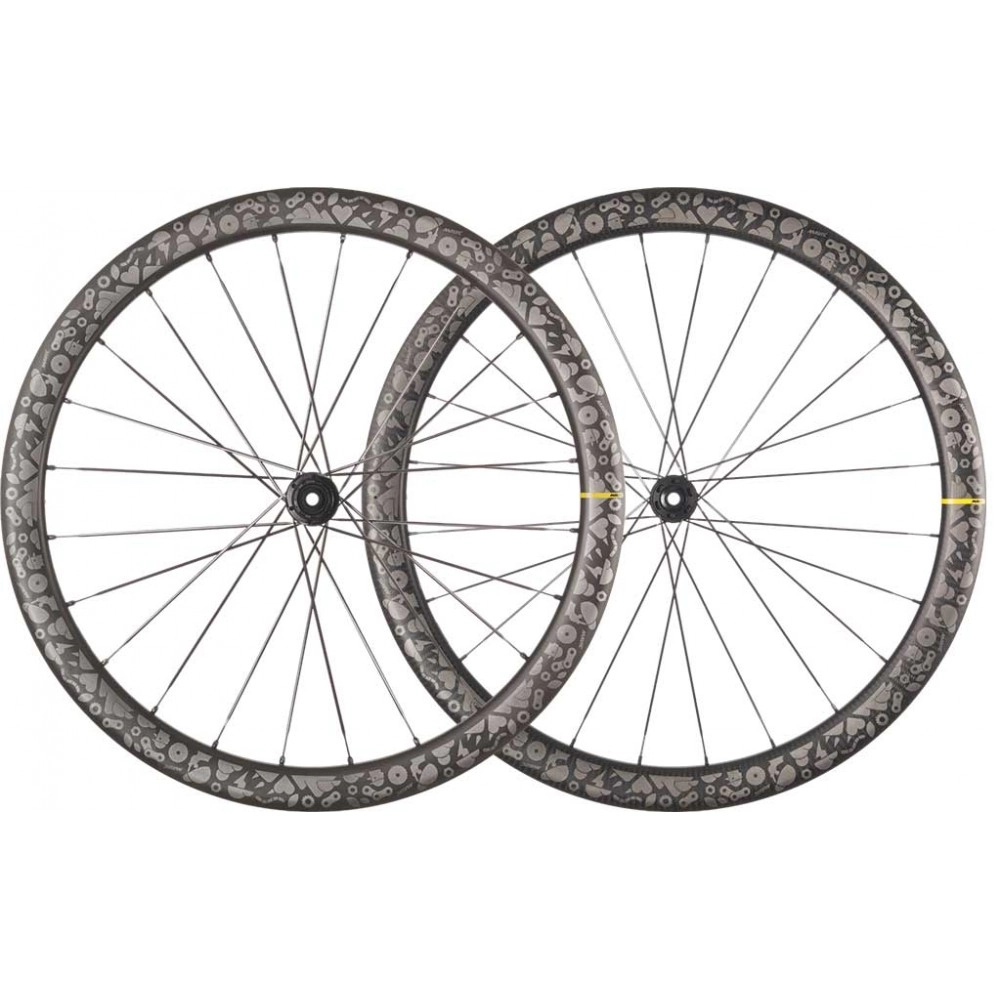

This all-new carbon wheelset is a great choice for road riders aiming to be fast and efficient in all types of riding and racing situations. Not only does the 45mm airfoil rim slice through the wind with minimal drag, but it’s also amongst the lightest in its category. This season, the external carbon layer features our new UD² construction for a distinctive look and an even lighter rim laminate, saving another 15g per rims.

A new rim laminate coupled with our exclusive Fore Carbon technology leaves the upper rim bridge intact and reinforces the rim only where needed, saving 40g per rim. The spokes attach to the rim without any need to drill the upper rim bed, so no rim tape is required. That means more weight savings (30g) and less hassle when it comes to set up or repair tubeless tires. The new shape of the rim bed makes it easier than ever to mount and remove tires. UST Tubeless setup means no tube, so no friction, and more air volume means a smoother ride. The result is a faster ride with super low rolling resistance. At last, our patented elliptical spokes save another 5 watts.

Specifications:

Rim

Material: 100% carbon fiber with outer layer UD

Material: 100% carbon fiber

Height: 45 mm

Specific profile for disc brakes

Pneumatic: Ust Tubeless and inner tube

Internal width: 19 mm

Etrum measure: 622x19tc

Tubeless technology without Flap Fore Carbon

Tubeless Ust technology

Rays

Material: steel

Form: straight, aerodynamic (elliptical form), double thickness (patented) head

Nipples: Integrated Fore in Aluminum

Number: 24 front and rear

Raggiaura: front and rear crossing in 2nd, without contact

Hubs

Mozzi Infinity

Front and rear body: aluminum

Starting material: aluminum

Technology free wheel instant drive 360

CAUTH CAUTH PRECARIC TECHNOLOGY

Front: compatible with quick locking system and 12x100 pivot

Rear: Quick locking, compatible with 12x142 and 12x135

Mozzo available only with Rotors of the Arrow Center Lock

Versions

Standard Disco: LOCK® CENTER ONLY

Free wheel: Shimano/Sram

Compatibility

Free wheel: Shimano/Sram, convertible to Campagnolo Ed11, N3W and XD-R with optional transmission bodies

Rear pin: 12 mm passing pin, convertible into a quick locking system through optional adapters

Front pivot: 12x100 passing pin, easily convertible into a quick locking system with optional adapters. Not compatible with the P

Compatible adapters and free wheel bodies

Front adapter from 12 to 9 mm for quick locking (V2680301)

Rear adapter from 12 to 9 mm with quick release (V2510801 (with V2373401 axis)

Adapters (V2510901) For rear pin 12x135 V2373401

Free wheel body ID360 shimano/sram light (V3850101)

Free wheel body ID360 Campagnolo (V3440101)

Free wheel body ID360 xD-R (V2580101)

Free wheel body ID360 Shimano/SRAM (V3430101)

Free wheel body ID360 n3w (V4270101)

Delivered with

Ust accessories and valve

User guide

Intended use

ASTM 2 category: road and off -road vehicle with jumps up to 15 cm

For a longer duration of the wheel, Mavic recommends that the total weight supported by the wheels of the bike does not exceed 120 kg, including bikes

Recommended pneumatic dimension: 25-32 mm

Maximum pressure: see the indication on a wheel and pneumatic. If they do not coincide, use the lower of the two.

Specified weight information

The weight of the wheels is expected to +/- 5%, in the XD/XD-R version and Center Lock, without quick release, valve or flap

Pair: 1440 grams

Front: 655 grams

Rear: 785 Grams

Key technologies

Guarantee and maintenance
