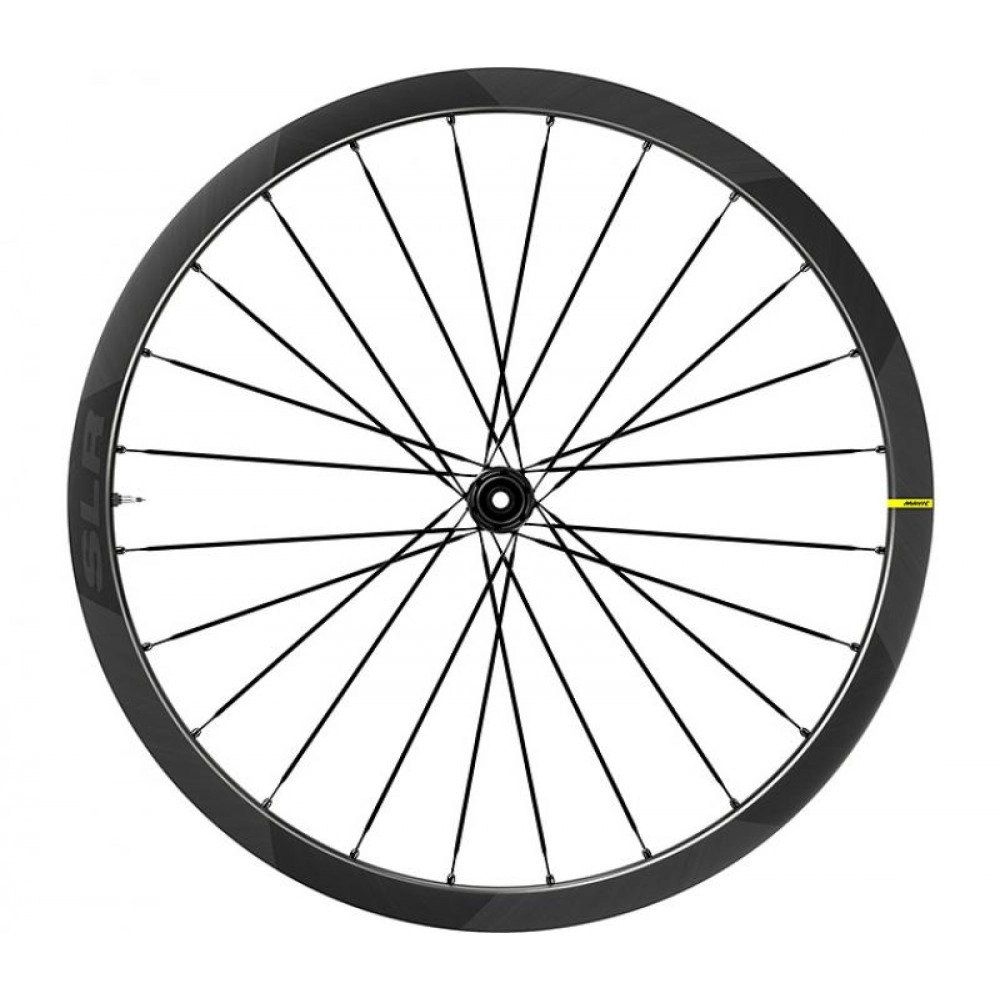

With a new, lighter weight 32mm carbon rim and easier to use Road Tubeless technology, this superlight disc-brake wheel is an instant performance boost, especially on steep climbs

KEY BENEFITS

Instant acceleration, improved climbing capabilities

32mm deep/28mm wide NACA profile optimized for disc brakes

Fore Carbon spoke attachment saves 40g and eliminates rim tape (another 30g saved per wheel)

Patented lightweight aero spokes

Stiffer wheel for improved power transfer

Fore Carbon technology keeps the rim upper bridge solid and makes the rim stiffer

New Infinity hub plaform: stiff axle, durable bearings and new hub design with optimized lacing and spoke tension

ID360 freewheel technology for instant power transfer

Improved UST Road delivers more speed, comfort and control in an easy to use tubeless system

No tubes means less friction, better efficiency and grip, a reduced risk of punctures

New rim bed shape makes it easier to mount and change tires

Fore Carbon drilling technology doesn't require the use of rim tape

When you’re gunning for the KOM on the toughest mountain climbs, nothing gives you more of a boost than a light and snappy carbon wheelset. This newcomer in the Cosmic family takes over the venerable Ksyrium Pro Carbon SL Disc. It features a reengineered carbon rim that’s the lightest in its category. Its 32mm airfoil shape slices through wind, and because the rim is made specifically for disc brakes, you’ll have more confidence and control on the descents.

The rim is crafted with a new laminate and our exclusive Fore Carbon technology that leaves the upper rim bridge intact and reinforces the rim only where needed. This saves 40g per wheel. The spokes attach to the rim without any need to drill the upper rim bed, so no rim tape is required. That means more weight savings (30g per wheel) and less hassle. The new shape of the rim bed makes it easier than ever to mount and remove tires, and you get super low rolling resistance with our UST Tubeless setup. No tube means no friction, and more air volume means a smoother, faster ride. It also uses our patented elliptical spokes to save another 5 watts and make you faster.

Our new Infinity hub platform optimizes spoke lacing for efficient power transfer through highly controlled spoke tension. Our Instant Drive 360 freewheel, coupled with our automatic bearing preload adjustment (QRM Auto), provides fast engagement, high stiffness and added durability. It's available for Shimano and SRAM XD-Road and can convert to Campagnolo with an optional driver body. It's compatible with 12x100 axle up front, 12x142 rear, and you can convert to Quick Release with the supplied adapters. For Center Lock disc rotors only.

These wheels are designed, engineered and patented by Mavic in Annecy, France, and are 100% handmade in our European carbon factory.

SPECIFICATIONS

Compatibility

Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.

Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters

Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Compatible Adapters and freewheel bodies

12 to 9mm rear adapter for quick release (LV2510800

ID360 Shimano / Sram freewheel body (LV3430100 - Delivered on the wheel)

ID360 XD-R freewheel body (LV2580100)

ID360 Campagnolo freewheel body (LV3440100)

ID360 Shimano / Sram Light freewheel body (LV3850100)

12 to 9mm front adapter for quick release (LV2680300)

Weight

Pair without tyre: 1410 grams

Front without tyre: 640 grams

Rear without tyre: 770 grams

Hubs

Infinity Hubs

Front: Quick release and 12x100 through axle compatible

QRM Auto bearing preload technology

Rear: Quick Release, 12x142 and 12x135 compatible

Instant Drive 360 freewheel technology

Front and rear bodies: aluminum

Axle material: aluminum

Intended Use

Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2

For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included

ASTM CATEGORY 2 : road and offroad with jumps less than 15cm

Recommended tyre sizes: 25 to 32 mm

Rims

Fore Carbon tapeless tubeless technology

Material: 100% carbon fiber

ETRTO size: 622x21TC ROAD

Height: 32mm

UST tubeless technology

Internal width: 21 mm

Disc brake specific profile

Tire: UST Tubeless and tubetype

Spokes

Lacing: front and rear crossed 2, contactless

Shape: straight pull, elliptical aero, double butted (patented)

Material: steel

Nipples: Fore integrated aluminum

Count: 24 front and rear

Versions

Freewheel: Shimano/Sram or XD-Road

Disc standard: Center Lock (R) only

DELIVERED WITH

UST valve and accessories

User guide
