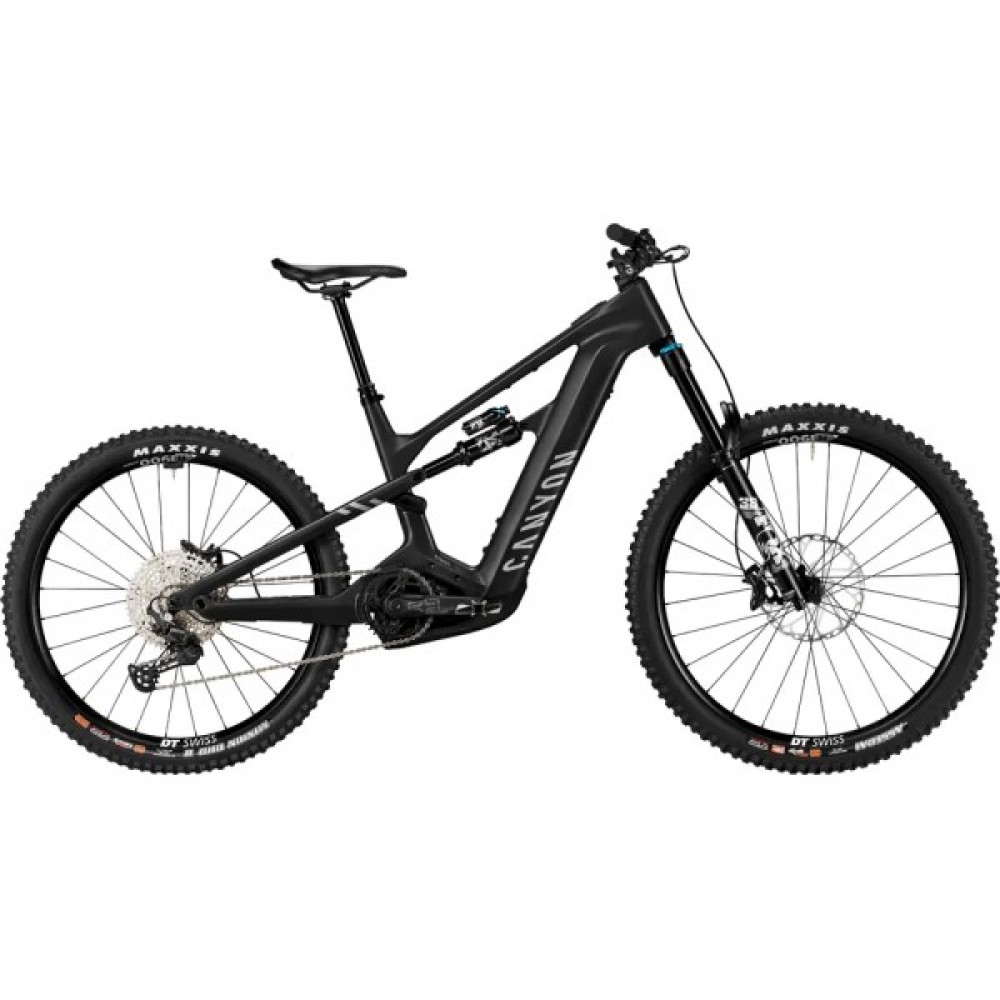

2024 Canyon Strive:ON CFR Underdog Electric Mountain Bike

Canyon Strive:ON, Carbon e-enduro frame engineered to compete at the highest level of pro racing, meeting our rigorous 4e testing standards. With discreetly integrated battery and motor., Axle dimension: 12x148 mm, Material: Carbon (CFR)

Fox 38 Rhythm Grip, Axle dimension: 15x110 mm, Stanchion Diameter: 38 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm

Shock

Fox Float X Evol

Bottom Bracket

Bosch, press-fit

Stem

Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL)

Handlebar

Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm

ERGON SM10 EMTB, Weight: 0.66 lbs

Seatpost

Iridium Dropper, The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 1.32 lbs

Grips

Canyon G5

Rear Derailleur

Shimano Deore M6100, Cage length: long, Weight: 0.70 lbs

Crank

e*thirteen E-Spec Plus BOSCH

Shifters

Shimano Deore M6100, Weight: 0.30 lbs

Cassette

Shimano Deore M6100, Number of sprockets: 12

Chain

Shimano CN-M6100

Chain Guide

Canyon GP0437-01 Chainguide

Brakes

SRAM Matchmaker Clamp | SRAM DB8 | SRAM DB8

Rims

DT SWISS H 1900 Spline Hybrid 29, Rotor mount: IS 6-bolt, Weight: 2.26 lbs | DT Swiss H1900, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Free hub: Shimano, Hub Technology: Ratchet, standard, Inner width: 30 mm, Spokes: Straight Pull, Rim material: Aluminium, Weight: 2.47 lbs

Tires

Maxxis Minion DHR II 3C MaxxTerra, Width: 2.4", Weight: 1.98 lbs | Maxxis Assegai 3C MaxxGrip, Width: 2,5", Weight: 2.56 lbs

Disc Rotors

SRAM Centerline, Size: 200 mm, Weight: 0.45 lbs | SRAM Centerline, Size: 220 mm, Weight: 0.49 lbs

Motor

Bosch Performance Line CX

Battery

Bosch PowerTube 750Wh | Bosch PowerTube 625Wh

Weight

24.5 kg
