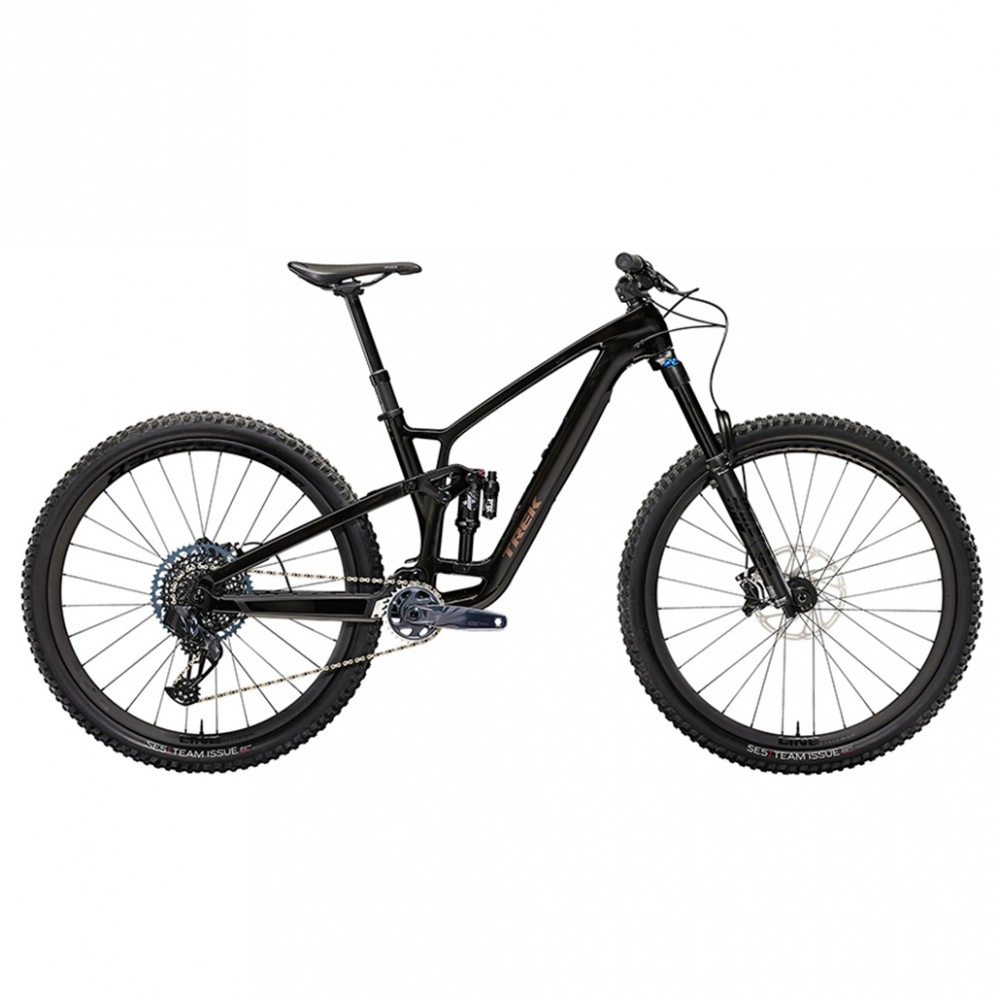

2023 TREK FUEL EX 9.8 GX AXS GEN 6 MOUNTAIN BIKE
Fuel EX 9.8 is a hard-charging trail bike with a light and stiff carbon frame that's smooth, quiet, and holds its own when you pick a line. It's loaded with the latest tech like a wireless SRAM GX AXS drivetrain that's super clean looking and customizable. 150mm front and 140mm rear suspension keep you in control on the roughest trails and it's all topped off with carbon Bontrager wheels with a quick-engaging hub.

SPECIFICATION :
Frame
OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Fork
Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
Rear Shock
Fox Performance Float X, 2-position damper, 185mm x 55mm
Bottom Bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Stem
Bontrager RSL Integrated, OCLV Carbon, length - 35mm (XS,S) / 45mm (M,ML,L,XL)
Handlebar
Bontrager RSL Integrated, OCLV Carbon, length - 35mm (XS,S) / 45mm (M,ML,L,XL)
Grips
Bontrager XR Trail Elite, nylon lock-on
Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Brakes
Shimano XTR M9120 4-piston hydraulic disc
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS, 12 speed
Chain
SRAM GX Eagle, 12 speed
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed
Crankset
SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
Front Wheel
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Rear Wheel
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Front Tyre
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Rear Tyre
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Seatpost
Bontrager Line Elite Dropper, length - 345mm (XS,S) / 440mm (M,ML) / 485mm (L) / 550mm (XL)
Weights
M-14.15kg / 31.21lbs
