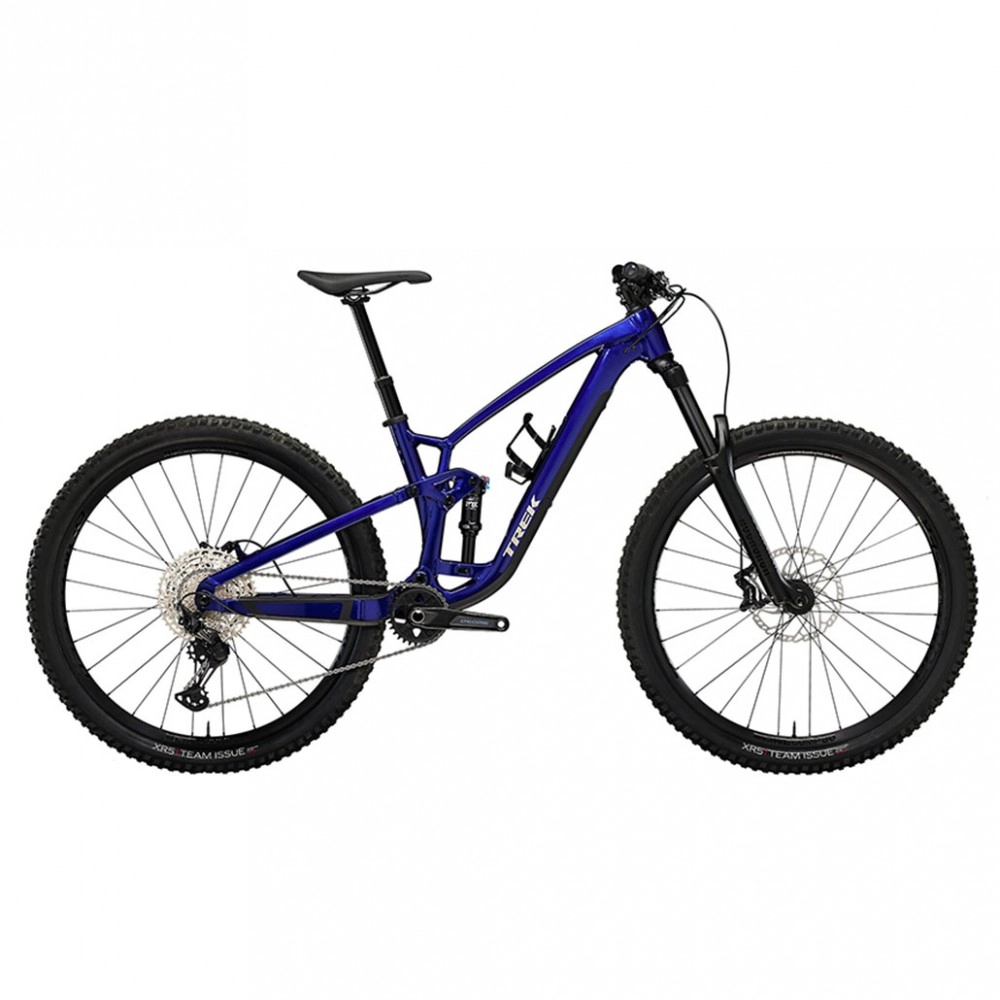

2023 TREK FUEL EX 7 GEN 6 MOUNTAIN BIKE
Fuel EX 7 is a do-anything trail machine evolved to eat up singletrack. Upgraded 150mm front and 140mm rear suspension smooth out rough and technical descents, while a lightweight aluminum frame keeps things lively on the climbs. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model, without the price tag. Tubeless wheels, and reliable Shimano SLX 1x12 drivetrain round-out this build for ultimate trail fun.

SPECIFICATION :
Frame
Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
Rear Shock
Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185mm x 55mm
Bottom Bracket
Shimano BB-MT501 BSA
Stem
Bontrager alloy, Blendr compatible, length - 35mm (XS,S) / 45mm (M,ML,L,XL,XXL)
Handlebar
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible
Brakes
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Rear Derailleur
Shimano XT M8100, long cage
Shift Levers
Shimano SLX M7100, 12 speed
Chain
Shimano Deore M6100, 12 speed
Cassette
Shimano Deore M6100, 10-51, 12 speed
Crankset
Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
Front Wheel
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Rear Wheel
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Front Tyre
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Rear Tyre
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
TranzX JD-YSI-22PLQ, 100mm (XS,S) / 150mm (M,ML) / 170mm (L-XXL)
Weights
M-15.97kg / 35.21lbs
