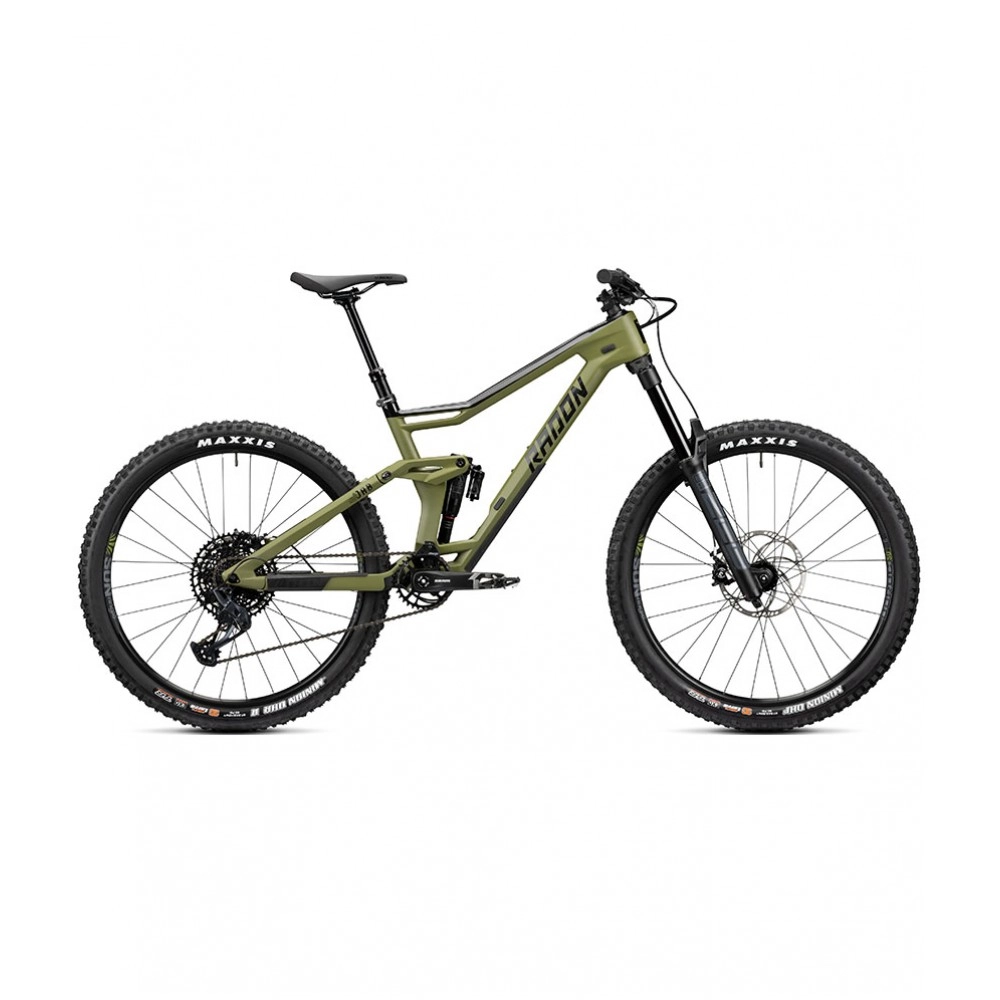

2023 RADON JAB 9.0 MOUNTAIN BIKE

The JAB 9.0 goes into the next round. With its full-fledged Enduro equipment, even the entry-level model makes the hearts of every trail rider beat faster. With its lightweight 2,200 gram full carbon frame, the JAB is still one of the lightest 170mm fullys and thanks to its 27.5" wheels it is also a very agile and playful bike.

SPECIFICATION
Frame
JAB, Weight 2.280 g, Max. width tire 2.4", Flip Chip for geometry adjusting, Hanger #10240
Frame material
Full Carbon mainframe and rear triangle
Wheel size
27.5"
Fork
RockShox ZEB Select, Charger RC, DebonAir+, Boost, Nachlauf: 44mm
Rear Shock
RockShox Super Deluxe Select+, DebonAir+, Einbaumaß: 205 x 65mm, Buchsenmaß: Trunnion / 8 x 22.2mm
Travel
170mm / 160mm
Brakes
Magura MT5
Brake discs
Magura Storm HC, 203/180mm, 6-bolt
Headset
Acros AzX, ZS44/ZS56
Stem
Race Face Æffect R, Ø35mm (16": 40mm, 18": 40mm, 20": 50mm, 22": 50mm)
Handlebar
Race Face Chester, 35 x 780mm, 35mm rise
Bar grips
SDG Thrice
Saddle
SDG Bel Air V3
Seatpost
Radon Competition Dropper, 31.6mm (16": 125mm Hub, 18": 150mm Hub, 20": 150mm Hub, 22": 150mm Hub)
Crankset
SRAM X1 1000 Eagle, DUB, 32T, Boost, 170mm
Bottom bracket
SRAM DUB, Pressfit, 92mm
Rear derailleur
SRAM GX Eagle, 12-speed
Gear shifters
SRAM NX Eagle, Shiftmix
Chain guide
MRP 1X, ISCG05
Cassette
SRAM NX Eagle PG-1230, 11-50
Chain
Sram SX Eagle
Front tyre
Maxxis Minion DHF 3C, Maxxterra, EXO, TR, 27.5" x 2.5" WT
Rear tyre
Maxxis Minion DHR II 3C, Maxxterra, EXO, TR, 27.5" x 2.4" WT
Wheelset
SUNringlé Düroc SD37, 32mm, 110/148mm
Pedals
Not included
Maximum total weight allowed
115 kg (body weight + bike + equipment)
Weight
Starting from 14,45 kg
