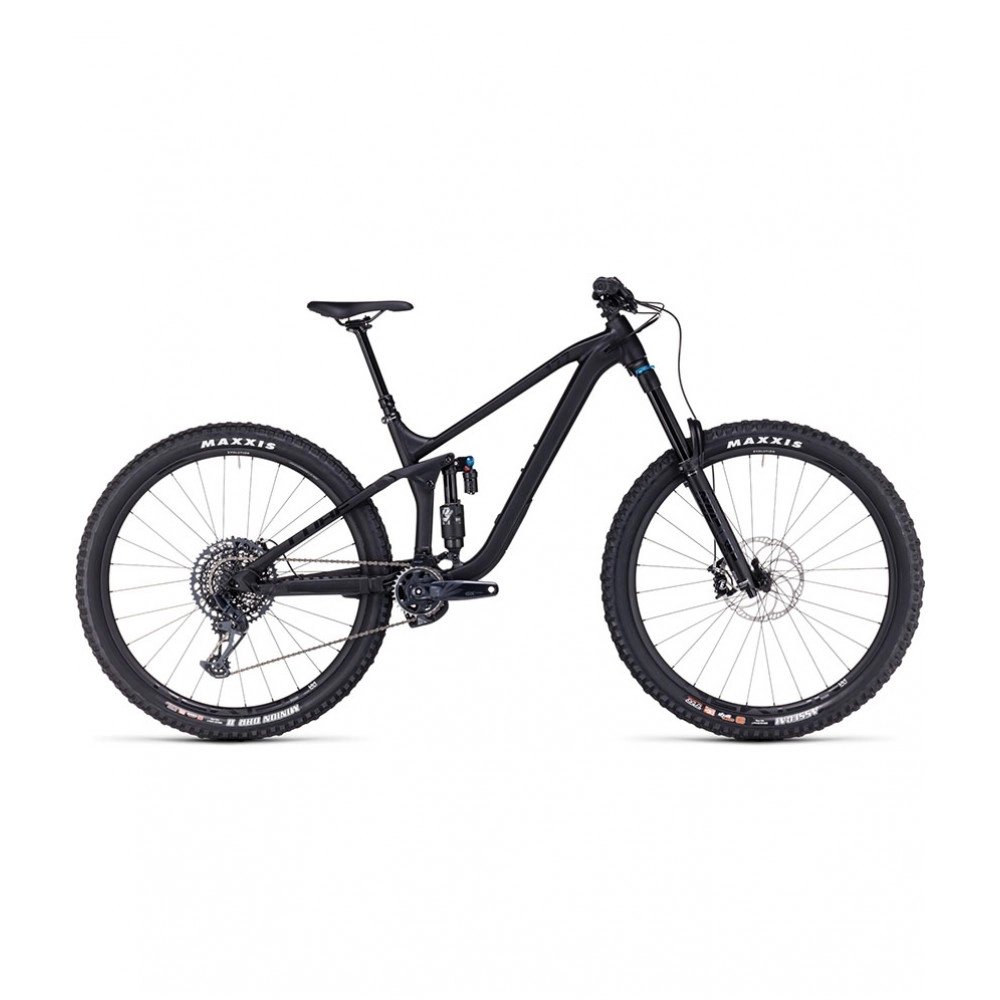

2023 CUBE STEREO ONE77 PRO 29 MOUNTAIN BIKE

Big wheels, big travel, big fun. The Stereo ONE77's frame is based on our proven four-bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling in a huge range of trail conditions. With a flip chip and two mounting points for air and coil, the rear suspension setup is designed to be progressive – and there's an angle adjustment insert so you can tweak the geometry to suit your own preference. The frame is equally happy with an air or coil shock, and covered bearings, internally routed cables and a threaded bottom bracket mean you can spend more time shredding and less time wrenching. Simply put, it redefines what a big-travel, big-wheeled bike can do.

SPECIFICATION:
Frame
HPA (High Performance Aluminum) alloy with Advanced Hydroforming, molded chainstay and down tube protection
Fork
FOX FLOAT 38 Performance, GRIP damper, 3-position compression lever with Micro Adjust
Shock
FOX FLOAT X2, 2-position compression lever, low-speed compression adjust, low-speed rebound adjust, 230mm length x 65mm stroke
Hubs
Newmen Evolution SL A.30 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver
Wheels
Newmen Evolution SL A.30, 28 hole, tubeless ready
Wheel Size
29"
Spokes
Newmen Evolution SL A.30 wheelset
Tires
Front: Maxxis Assegai, 3C MaxxGrip compound, EXO+ casing, TR, 29"" x 2.5" WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4" WT
Chain
SRAM SX Eagle, 12-speed
Crank
SRAM GX Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB MTB, 92mm PressFit
Rear Derailleur
SRAM GX Eagle, 12-speed
Shifters
SRAM NX Eagle, 12-speed
Brakeset
Magura MT5, 4-piston, 203mm front rotor, 180mm rear rotor, Magura MT5
Handlebar
Race Face Chester, 780mm width, 35mm clamp diameter
Saddle
Natural Fit Venec Lite
Seatpost
Cube dropper, 150mm drop, 31.6mm, Single bolt
Stem
Race Face Aeffect R, 6° rise, 35mm bar clamp, Length: 40mm (MD/LG), 50mm (XL/XXL)
Grips
ACID Disrupt, Soft Compound
Headset
ACROS Integrated, fiber inserts for 0.6° angle adjustment
Weight
15.9 kg
