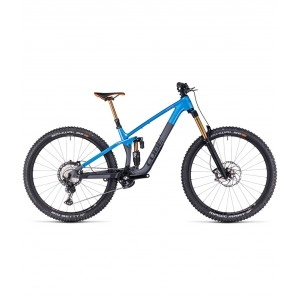

2023 CUBE STEREO ONE77 C:68X SLX 29 MOUNTAIN BIKE

It's tough to improve on perfection, but that's what we've done with the new Stereo ONE77 C:68X frame. First up, it's light, at just 2.3kg. That's a difference you can feel on the climbs and descents. There's a flip chip and two mounting points for air and coil shocks, giving a range of options for progression and shock performance. An angle adjustment insert means you can switch between 63.8 and 64.4 head angles and the bottom bracket is threaded for maximum versatility and durability. We deliberately didn't include a frame storage compartment, because we wanted to keep weight down and strength up. But there is a mounting point for a custom trail tool under the down tube. Simply put, you're all set. Bring it on...

SPECIFICATION:
Frame
C:68X Monocoque front and rear triangles with Advanced Twin Mold Technology, molded chainstay and down tube protection
Fork
FOX FLOAT 38 Factory, GRIP2 damper, Kashima coating
Shock
FOX FLOAT X2 Factory, 2-position compression lever, high/low-speed compression adjust, high/low-speed rebound adjust, Kashima coating, 230mm length x 65mm stroke
Hubs
Newmen Evolution SL A.30 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Wheels
Newmen Evolution SL A.30, 28 hole, tubeless ready
Wheel Size
29"
Spokes
Newmen Evolution SL A.30 wheelset
Tires
Front: Schwalbe Magic Mary, Super Trail casing, Addix Soft compound, Kevlar, 29"" x 2.4"
Rear: Schwalbe Big Betty, Super Trail casing, Addix Soft compound, Kevlar, 29" x 2.4"
Chain
Shimano Deore M6100, 12-speed
Crank
Shimano Deore XT M8100, 170mm length
Bottom Bracket
Shimano BB52, 73mm English/BSA threaded
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage
Shifters
Shimano Deore XT M8100, 12-speed, direct attach mounting bracket
Brakeset
Shimano Deore XT M8120, 4-piston, 203mm front rotor, 180mm rear rotor, Shimano Deore XT M8120
Handlebar
Race Face Next R Carbon, 800mm width, 35mm clamp diameter
Saddle
Natural Fit Nuance SLT Carbon
Seatpost
FOX Transfer Factory dropper, Kashima coating, 31.6mm, Single bolt
Drop:
150mm (MD)
175mm (LG-XXL)
Stem
Race Face Turbine R, 35mm bar clamp, Length: 40mm (MD/LG), 50mm (XL/XXL)
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-675, fiber inserts for angle adjustment, ICR (Integrated Cable Routing), ZS56 upper/lower
Weight
14.7 kg
