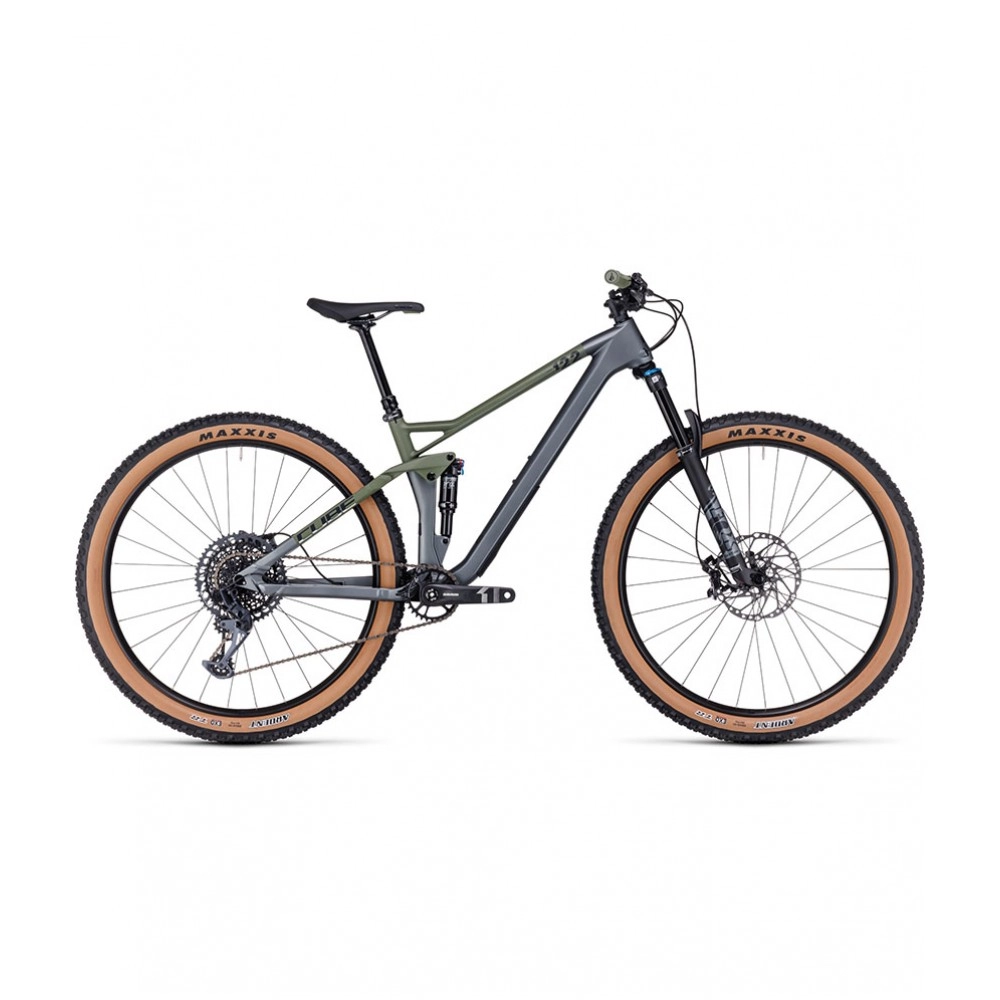

2023 CUBE STEREO ONE22 HPC TM 29 MOUNTAIN BIKE

The Stereo ONE22 sets the bar for comfortable trail bikes pretty high. The Stereo ONE22 HPC moves it higher still by incorporating a light, stiff and elegant carbon front triangle for reduced weight and even better handling. The short rocker, covered pivot bearings and efficient kinematics deliver superb traction, comfort and control. There's a tapered head tube and Boost 148 rear axle for precision handling. And our Agile Trail Geometry always has your back, so you can keep the rubber side down and the fun factor up.

SPECIFICATION:
Frame
HPC (High Performance Carbon) Monocoque front triangle with Advanced Twin Mold Technology, 6061-T6 aluminum rear triangle, molded down tube protection
Fork
FOX FLOAT 34 Rhythm, GRIP damper, Sweep Adjust compression lever
Shock
FOX FLOAT DPS, 3-position compression lever (Open/Medium/Firm), 190mm length x 45mm stroke
Hubs
Fulcrum Red Metal 500, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver
Wheels
Fulcrum Red Metal 500, 28 hole, tubeless ready
Wheel Size
29"
Spokes
Fulcrum Red Metal 500 wheelset
Tires
Maxxis Ardent, EXO casing, TR, 29"" x 2.4"
Chain
SRAM SX Eagle, 12-speed
Crank
SRAM X1 Eagle 1000 DUB, 170mm length
Bottom Bracket
SRAM DUB MTB, 92mm PressFit
Rear Derailleur
SRAM GX Eagle, 12-speed
Shifters
SRAM NX Eagle, 12-speed
Brakeset
Front: Shimano Deore XT M8120, 4-piston, 203mm rotor
Rear: Shimano Deore XT M8100, 2-piston, 180mm rotor, Shimano Deore XT M8100
Handlebar
Newmen Evolution SL 318.25, 760mm width, 31.8mm clamp diameter
Saddle
SDG Bel-Air V3
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Drop:
125mm (SM)
150mm (MD-XL)
Stem
Newmen Evolution SL 318.4, 6° rise, 31.8mm bar clamp, Length: 50mm (SM-LG), 60mm (XL)
Grips
SDG Thrice
Headset
VP integrated
Weight
13.5 kg
