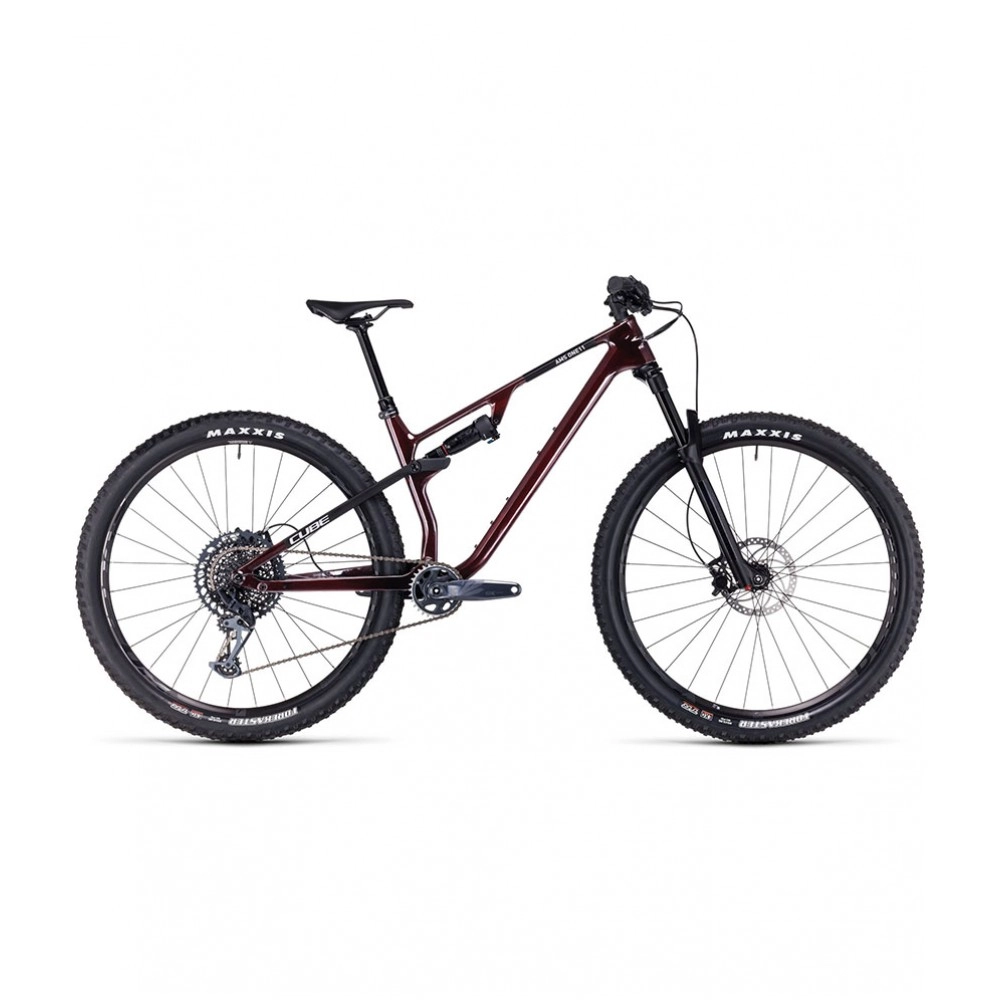

2023 CUBE AMS ONE11 C:68X PRO 29 MOUNTAIN BIKE

When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g. Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there's even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.

SPECIFICATION:
Frame
C:68X Monocoque Carbon front and rear triangles with Advanced Twin Mold Technology
Fork
RockShox Recon Gold RL Air, 32mm stanchions
Shock
RockShox Deluxe Select+, 190mm length x 42.5mm stroke
Hubs
Fulcrum Red 77 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver
Wheels
Fulcrum Red 77, 28 hole, tubeless ready
Wheel Size
29"
Spokes
Fulcrum Red 77 wheelset
Tires
Maxxis Forekaster, EXO casing, TR, 29"" x 2.35"
Chain
SRAM SX Eagle, 12-speed
Crank
SRAM GX Eagle Carbon DUB, Length: 170mm (SM), 175mm (MD-XL)
Bottom Bracket
SRAM DUB, 92mm PressFit
Rear Derailleur
SRAM GX Eagle, 12-speed
Shifters
SRAM GX Eagle, 12-speed
Brakeset
Magura MT Thirty, 2-piston, 180mm rotors, Magura MT Thirty
Handlebar
Newmen Evolution 318.20, 760mm width, 31.8 clamp diameter
Saddle
Natural Fit Nuance
Seatpost
Cube dropper, 30.9mm, Single bolt, 34.9mm
Drop:
125mm (SM)
150mm (MD-XL)
Stem
Newmen Evolution SL 318.4, 6° rise, 31.8mm bar clamp, Length: 50mm (SM), 60mm (MD/LG), 70mm (XL)
Grips
SDG Thrice
Headset
ACROS Integrated, fiber inserts for 0.6° angle adjustment
Weight
12.5 kg
