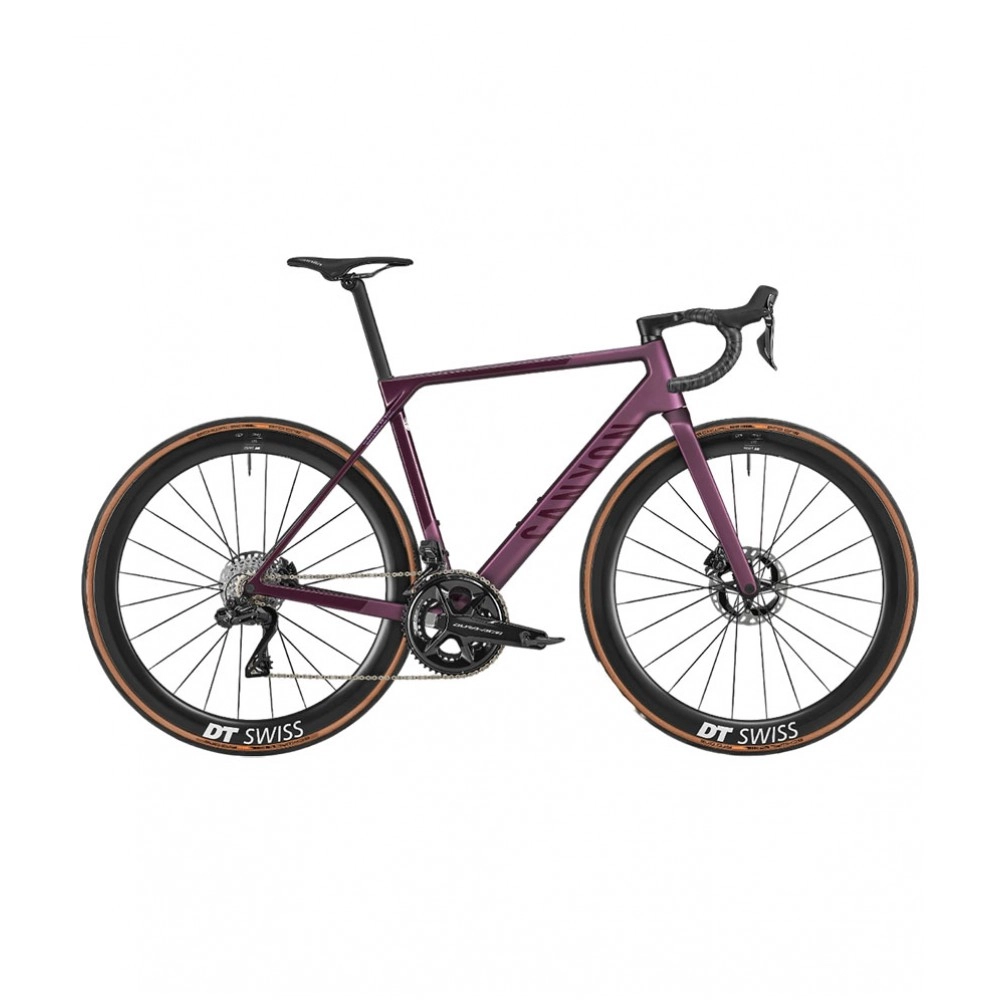

Finely balanced all-round performance. Class-leading design. Unmatched ride feel. Looking for the Ultimate all-round road race bike? You just found it.

SPECIFICATION :
Frame
Canyon Ultimate CF SLX Disc
5th-generation Ultimate frame.
Classic road race design, engineered for the perfect balance of comfort, toughness, stiffness, lightness, and aerodynamics.
Axle dimension: 12x142 mm
Material: Carbon (CF)
Fork
Canyon FK0104 CF Disc
Carbon fork optimised for lightness, stiffness, and strength.
Material: carbon
Steerer: 1 1/4"
Axle dimension: 12 x 100 mm
Brake mount: flat mount
Axle dimension: 12x100 mm
Material: Carbon (CF)
Rear Derailleur
Shimano Dura-Ace Di2 R9250,12-speed
Pro-level wireless derailleur providing Shimano’s fastest-ever shifting.
Front Derailleur
Shimano Dura-Ace Di2 R9250
Semi-wireless derailleur with world-class performance. 45% faster shifting. 33% smaller frontal area.
Superlight: only 99 g
Attachment type: braze-on
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-30
The latest generation of superlight Shimano cassettes.
Gear range: 11-30 T
Crank
Shimano Dura-Ace Di2 R9200 Powermeter
Pro-level crankset with optimal balance of stiffness, strength, weight, and performance. With integrated dual-sided power meter – waterproof, with rechargeable li-ion battery.
Number of chainrings: 2
Bottom bracket
Shimano Pressfit BB92
Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology.
Weight: 54 g
Chain
Shimano CN-M8100 12s
Chain featuring SIL-TEC ultra-low friction surface treatment on inner plate for precise shifting and improved durability. Extended inner plates also improve chain engagement and retention. With quick link for fast fitting and assembly.
Shift-/ Brake Lever
Shimano Dura-Ace Di2 R9270, 12-speed
Number of pistons: 2
Shift-/ Brake Lever
Shimano Dura-Ace Di2 R9270, 12-speed
Number of pistons: 2
Brake Rotor
Shimano XTR RT-MT900
Premium XTR rotor with superb stopping power for the most aggressive riding. With Ice Freeza tech for superior heat management.
Mount: centrelock
Superlight: 88 g
Brake Rotor
Shimano XTR RT-MT900
Premium XTR rotor with superb stopping power for the most aggressive riding, with Ice Freeza tech for superior heat management.
Superlight: 108 g
Disc Mount: Centerlock
Size: 160 mm
Wheel
DT Swiss ARC 1100 Dicut db
Front wheel with Aero+ technology for stability, low drag, and all-round performance. With DT Swiss aero spokes and SINC ceramic bearings.
Tubeless-ready
Rim depth: 50 mm
Inner width: 20 mm
Wheel
DT Swiss ARC 1100 Dicut db
Rear wheel with Aero+ technology for stability, low drag, and all-round performance. With DT Swiss aero spokes and SINC ceramic bearings.
Tubeless-ready.
Rim height: 50 mm
Inner width: 20 mm
Rotor mount: Center Lock
Rim height: 50 mm
Wheelsize: 28"
Tyre
Schwalbe Pro One, 25mm
High-end road tyre that combines suppleness, speed, and control at the highest level.
Tech: tubeless-ready, v-guard puncture protection
Compound: Addix Race
Tyre
Schwalbe Pro One, 28mm
High-end road tyre that combines suppleness, speed, and control at the highest level.
Tech: tubeless-ready, v-guard puncture protection
Compound: Addix Race
Thru Axle
DT Swiss through axle without lever
Aluminium construction.
Thread pitch: 1.75 mm
Axle dimension: 12x100 mm
Thru Axle
DT Swiss through axle with lever
Aluminium construction.
Thread pitch: 1.75 mm
Axle dimension: 12x142 mm
Cockpit
Canyon CP0018 Aerocockpit
Aero design, reinforced carbon walls for added stiffness and improved durability.
Easy width adjustment: +/-20 mm
Cut-free height adjustment: 15 mm
Weight: 440 g
Material: Carbon (CF)
Handlebar Tape
Canyon Ergospeed Gel
Bar tape with EVA foam and elastomer gel mix for optimal comfort.
Color: black
Saddle
Selle Italia SLR Boost Superflow Kit Carbonio
Superlight saddle with carbon rails, modern short-nose design and unisex ergonomics.
Width: 130mm (S)
Rail material: carbon (oval)
Weight: 122 g
Gender: Unisex
Seatpost
Canyon SP0055
Custom carbon seatpost with aerodynamic D-shape profile.
Setback: 10 mm
Weight: 110 g
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon starter box
All you need to get riding: Quick Start Guide, manual, torque wrench incl. bit set, assembly paste.
Manuals and Accessories
Quickstart Guide Ultimate CF
