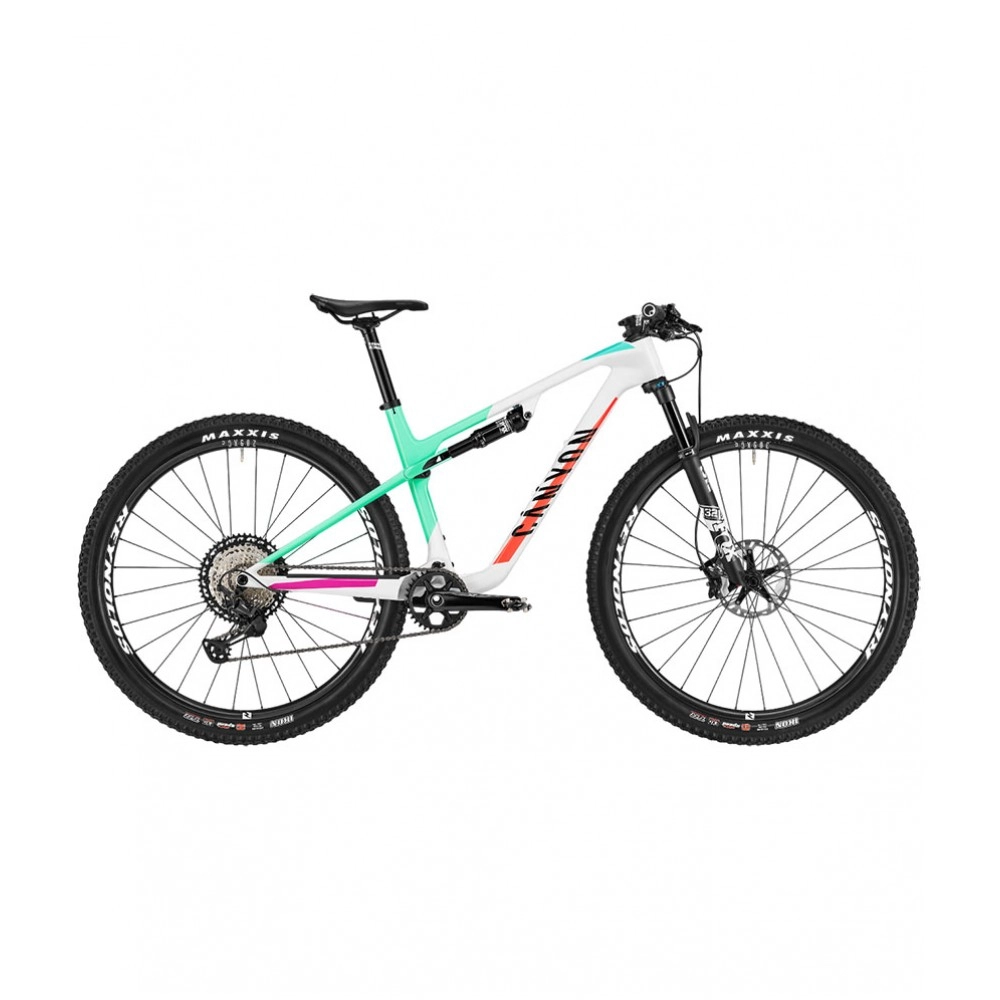

Instant acceleration, high top speed, precise handling: the Lux World Cup 7 comes into its own on techy climbs and is lightning fast when you’re sprinting to the line. Ready to race? Then you just might have found your perfect bike.

SPECIFICATION :
Frame
Canyon Lux WC CF
Axle dimension: 12x148 mm
Material: Carbon (CF)
Rear Shock
FOX Float DPS Performance Elite Remote
Suspension Fork
FOX 32 Step-Cast Performance Elite Remote
Built to withstand the demands of top XC riders, the Fox 32 Step-Cast forks feature a remote 2 position damper to adjust the ride characteristics without missing a pedal stroke.
Axle dimension: 15x110 mm
Stanchion Diameter: 32 mm
Travel: 100 mm
Fork steer tube diameter: 1 1/8" - 1,5"
Rear Derailleur
Shimano Deore XT M8100 12speed
Precise 1x12 drivetrain.
Shift Lever
Shimano Deore XT, 12-speed
Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano XT, 12-speed (10-51)
Cassette size: 10-51T
Gear range: 510%
Crank
Shimano XT M8120 34T
34 tooth chainring with 175mm cranks. XT HOLLOWTECH II provides a great balance of strength and light weight.
Number of chainrings: 1
Bottom bracket
Shimano Pressfit BB71
Bottom bracket bearings that are built to last, no matter what you throw at them.
Bottom bracket standard: PF 89,5/92
Chain
Shimano CN-M8100 12s
Chain featuring SIL-TEC ultra-low friction surface treatment on inner plate for precise shifting and improved durability. Extended inner plates also improve chain engagement and retention. With quick link for fast fitting and assembly.
Disc Brake
Shimano Deore XT M8100
Shimano XT delivers consistent and reliable braking with outstanding power modulation.
Disc Brake
Shimano XT M8110
Brake Rotor
Shimano RT-MT800, 180mm
Size: 180 mm
Brake Rotor
Shimano RT-MT800, 160mm
Size: 160 mm
Wheel
Reynolds TR309c XC
Carbon XC wheels that combine flawless ride quality and durability, designed to push the limits of aggressive racing and riding.
Axle dimension: 15x110 mm
Rotor mount: Center Lock
Inner width: 30 mm
Wheelsize: 29"
Wheel
Reynolds TR289c XC, S12
Carbon XC wheels that combine flawless ride quality and durability, designed to push the limits of aggressive racing and riding.
Axle dimension: 12x148 mm
Rotor mount: Center Lock
Wheelsize: 29"
Tyre
"MAXXIS Ikon Exo 2.35"""
Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions.
Width: 2.35"
Thru Axle
Canyon Quixle Thru Axle
The Canyon Quixle combines the stiffness of a through axle with the ease-of-use of a quick-release. You can quickly remove the rear wheel without tools. The handle discreetly slides into the axle after usage. The Quixle is only combined with the rear wheel.
Axle dimension: 12x148 mm
Stem
Race Face Ride
Fork steer tube diameter: 1 1/8" - 1 1/4"
Handlebar
Race Face Ride Rise
Flat bars that offer great control without compromising performance.
Clamping diameter: 31,8 mm
Width: 740 mm
Grips
Ergon GA20
High-grade lock-on grips providing comfort and control in equal measure.
Saddle
Ergon SR10 Pro Sport
High-performance saddle. Multiple comfort features: cut-out channel, OrthoCell pads, AirCell foam. With TiNox rails and carbon fibre shell for minimum weight
Seatpost
Race Face Ride
Featuring the Race Face dual-bolt, adjustable head design making a saddle fit so easy.
Clamp diameter: 30,9 mm
Material: Aluminium (AL)
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Smallbox
Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
Manuals and Accessories
Quick Start Guide
Manuals and Accessories
Quick Start Guide
