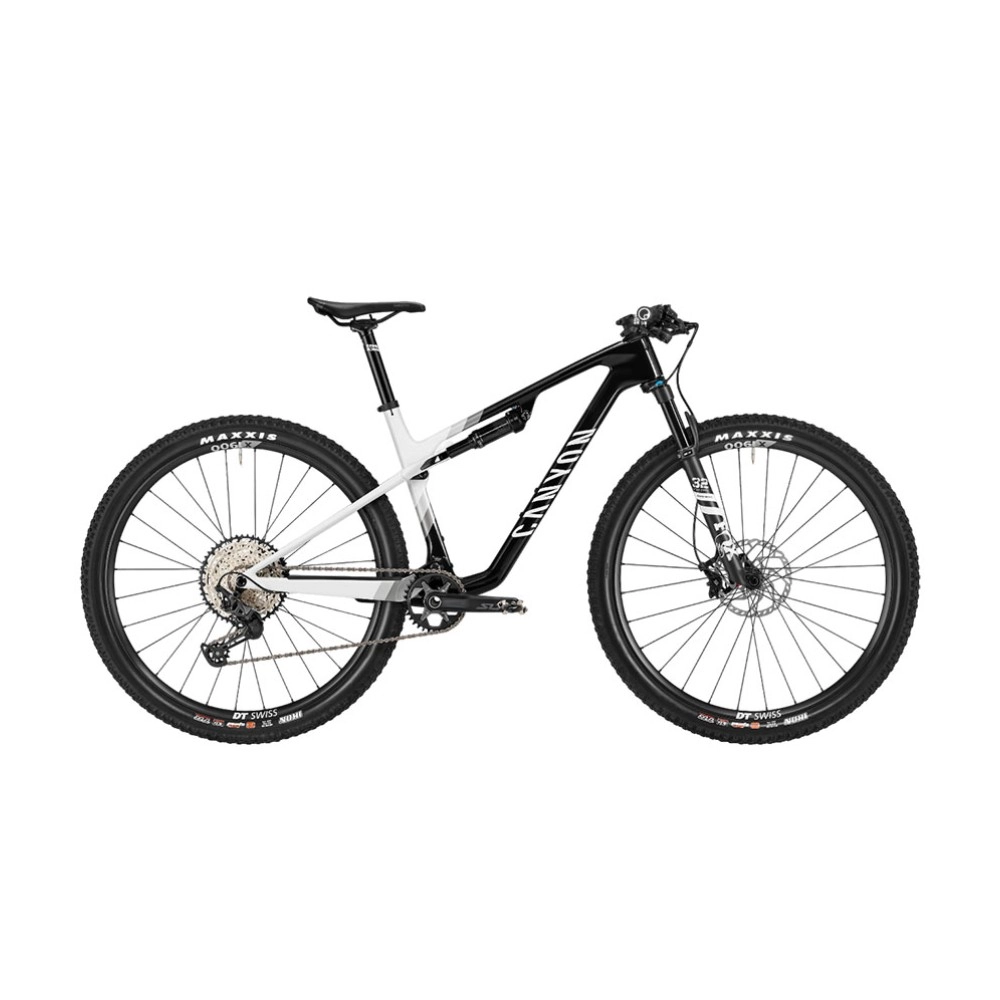

This rapid XC race bike makes our World Cup-level performance DNA available in a more accessible package. With its top-end carbon frame, aggressive geometry, and reliable components, the Lux World Cup 6 is made to win.

SPECIFICATION :
Frame
Canyon Lux WC CF
Axle dimension: 12x148 mm
Material: Carbon (CF)
Rear Shock
FOX Float DPS Performance Elite Remote
Suspension Fork
FOX 32 Step-Cast Performance Remote
Built to withstand the demands of top XC riders, the Fox 32 Step-Cast forks feature a remote 2 position damper to adjust the ride characteristics without missing a pedal stroke.
Axle dimension: 15x110 mm
Stanchion Diameter: 32 mm
Travel: 100 mm
Fork steer tube diameter: 1 1/8" - 1,5"
Rear Derailleur
Shimano SLX, 12-speed
Fast, shockless shifting with HYPERGLIDE+ to deliver your power in all the right places.
Cage length: long
Shift Lever
Shimano SLX, 12-speed
12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
Cassette
Shimano SLX, 12-speed (10-51)
Cassette size: 10-51T. Gear range: 510%.
Crank
Shimano SLX M7120
170 - 175mm cranks with a 34 tooth chainring.
Number of chainrings: 1
Bottom bracket
Shimano Pressfit BB71
Bottom bracket bearings that are built to last, no matter what you throw at them.
Bottom bracket standard: PF 89,5/92
Chain
Shimano CN-M7100 12s
Chain featuring SIL-TEC ultra-low friction surface treatment on inner plate for precise shifting and improved durability. Extended inner plates also improve chain engagement and retention. With quick link for fast fitting and assembly.
Disc Brake
Shimano SLX M7100
Reliable and dependable front disc brake.
Disc Brake
Shimano SLX M7110
Brake Rotor
Shimano RT66 160
Size: 160 mm
Brake Rotor
Shimano RT66 180
Size: 180 mm
Wheel
DT Swiss X 1900 Spline
Strong, lightweight wheels that perform as beautifully as they look.
Rotor mount: IS 6-bolt
Wheelsize: 29"
Wheel
DT Swiss X 1900 Spline
Strong, lightweight wheels that perform as beautifully as they look. The high precision freehub minimizes resistance and maximizes lifespan.
Rotor mount: IS 6-bolt
Wheelsize: 29"
Tyre
"MAXXIS Ikon Exo 2.35"""
Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions.
Width: 2.35"
Thru Axle
Canyon Quixle Thru Axle
The Canyon Quixle combines the stiffness of a through axle with the ease-of-use of a quick-release. You can quickly remove the rear wheel without tools. The handle discreetly slides into the axle after usage. The Quixle is only combined with the rear wheel.
Axle dimension: 12x148 mm
Stem
Race Face Ride
Fork steer tube diameter: 1 1/8" - 1 1/4"
Handlebar
Race Face Ride Rise
Flat bars that offer great control without compromising performance.
Clamping diameter: 31,8 mm
Width: 740 mm
Grips
Ergon GA20
High-grade lock-on grips providing comfort and control in equal measure.
Saddle
Ergon SR10 Pro Sport
High-performance saddle. Multiple comfort features: cut-out channel, OrthoCell pads, AirCell foam. With TiNox rails and carbon fibre shell for minimum weight
Seatpost
Race Face Ride
Featuring the Race Face dual-bolt, adjustable head design making a saddle fit so easy.
Clamp diameter: 30,9 mm
Material: Aluminium (AL)
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Smallbox
Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
Manuals and Accessories
Quick Start Guide
Manuals and Accessories
Quick Start Guide
