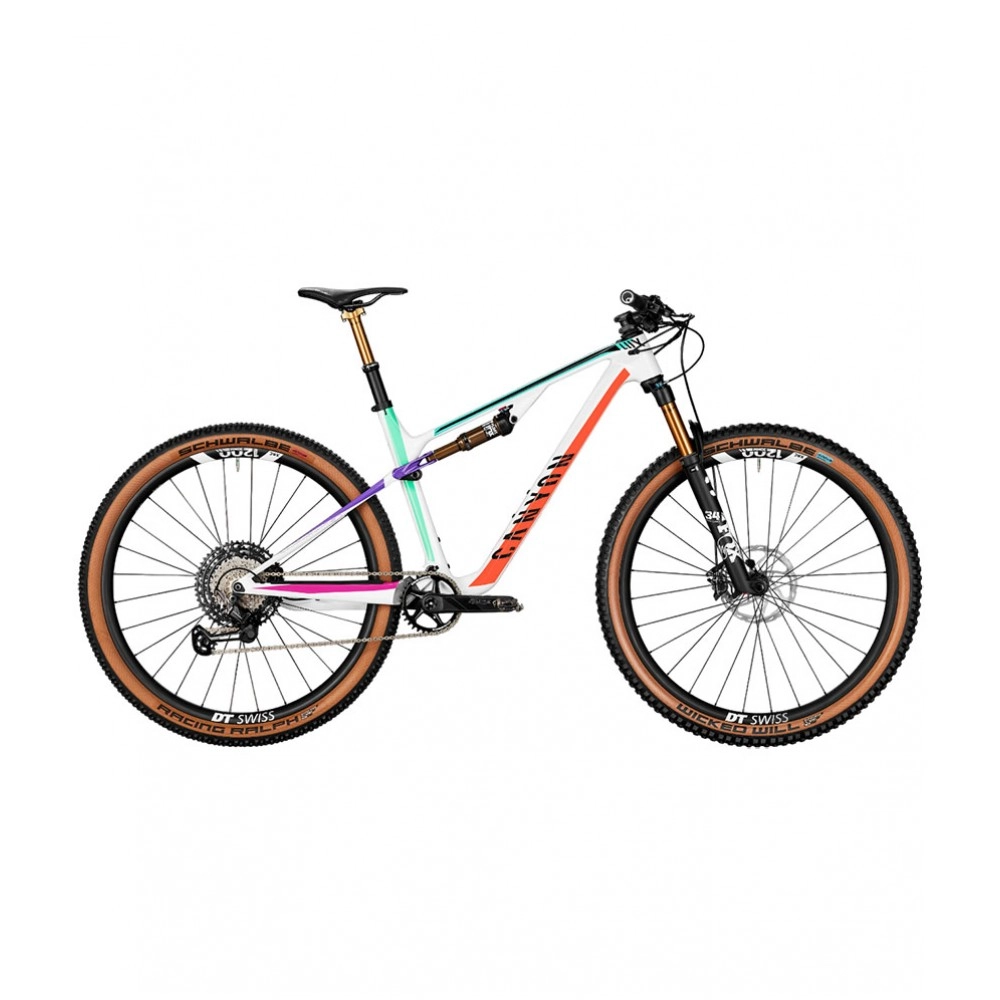

Rapid on the climb, superbly capable on fast descents – the Lux Trail CF 9 is a truly top-end down-country bike. Alongside its superb components, this bike also looks sensational in the team artwork of World Cup rider Emily Batty.

SPECIFICATION :
Frame
Lux Trail CF
Lightweight, progressive, full-suspension carbon frame for greater control on rough tracks. Weight: 1,905 g. Rear travel: 110 mm. Wheel size: 29".
Rear Shock
FOX Float DPS Factory 3-Pos Remote
With 3-position compression adjustment: open/trail/firm. With handlebar-mounted lockout. Dimensions: 210 x 55 mm.
Tune: LCL, LRL, CMF.
Suspension Fork
FOX 34 Stepcast Factory Remote
120 mm travel. With special Kashima coating for maximum sensitivity and durability. Stanchion width: 34 mm. Axle dimensions: 15 x 110 mm.
Volume Spacer: 3. Offset: 44mm.
Rear Derailleur
Shimano XTR, 12-speed
High-end 12-speed shifting system.
Shift Lever
Shimano XTR, 12-speed
Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Cassette
Shimano XTR CS-M9101 12s 10-51
Number of sprockets: 12
Crank
Race Face Next SL G5 Carbon 34T
Carbon crankset. Crank arm length: S = 170 | M - XL = 175. Chainring size: 34T.
Bottom bracket
Race Face Pressfit Cinch
Race Face's CINCH system provides a great, no fuss, reliable drivetrain with a quiet bottom bracket that will keep you going for years.
Bottom bracket standard: PF 92
Chain
Shimano M9100 12-speed
Disc Brake
Shimano XTR M9100
2-piston brake callipers. With ergonomic design and adjustable levers.
Disc Brake
Shimano XTR M9110 Flatmount
Clean and compact disc brakes with superb performance and reliable stopping power in all conditions.
Brake Rotor
Hayes D-Series 160 mm
Size: 160 mm
Brake Rotor
Hayes D-Series 180 mm
Size: 180 mm
Wheel
DT Swiss XRC 1200 Spline
Axle dimension: 12x148 mm
Rotor mount: Center Lock
Inner width: 30 mm
Wheelsize: 29"
Wheel
DT Swiss XRC 1200 Spline
Axle dimension: 15x110 mm
Rotor mount: Center Lock
Inner width: 30 mm
Wheelsize: 29"
Tyre
Schwalbe Racing Ralph SR TLE EVO 2.35"
Fast-rolling 29-inch cross-country tyre
Width: 2.35"
Tyre
Schwalbe Wicked Will SR TLE EVO 2.4"
29-inch tyres combining the speed of a cross-country tyre with the grip of a trail tyre
Width: 2.4"
Thru Axle
Canyon GP0415-04 Thru Axle 148X12
The Canyon Quixle combines the ease-of-use of a quick release with the stiffness of a through axle. Dimensions: 148 x 12 mm.
Stem
Race Face Ride
Durable, fuss-free alloy stem
Length: 60 mm
Material: 6061 aluminium
Stem Spacer: S: 5, M: 10, L: 15, XL: 20
Fork steer tube diameter: 1 1/8"
Clamping diameter: 35,0 mm
Handlebar
Race Face Next 35
Robust, reliable carbon bar. Width: 760 mm. Diameter: 35 mm. Material: Carbon.
Rise: 10mm. Upsweep: 5°. Backsweep: 8°.
Grips
Ergon GA20
High-grade lock-on grips providing comfort and control in equal measure.
Saddle
Selle Italia SLR Boost
Saddle shaped to support a more aggressive riding position.
Gender: Male
Seatpost
FOX Transfer SL Factory
Dropper post with bar-mounted lever. Travel: 100 mm. diameter: 30.9 mm.
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Smallbox
Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
