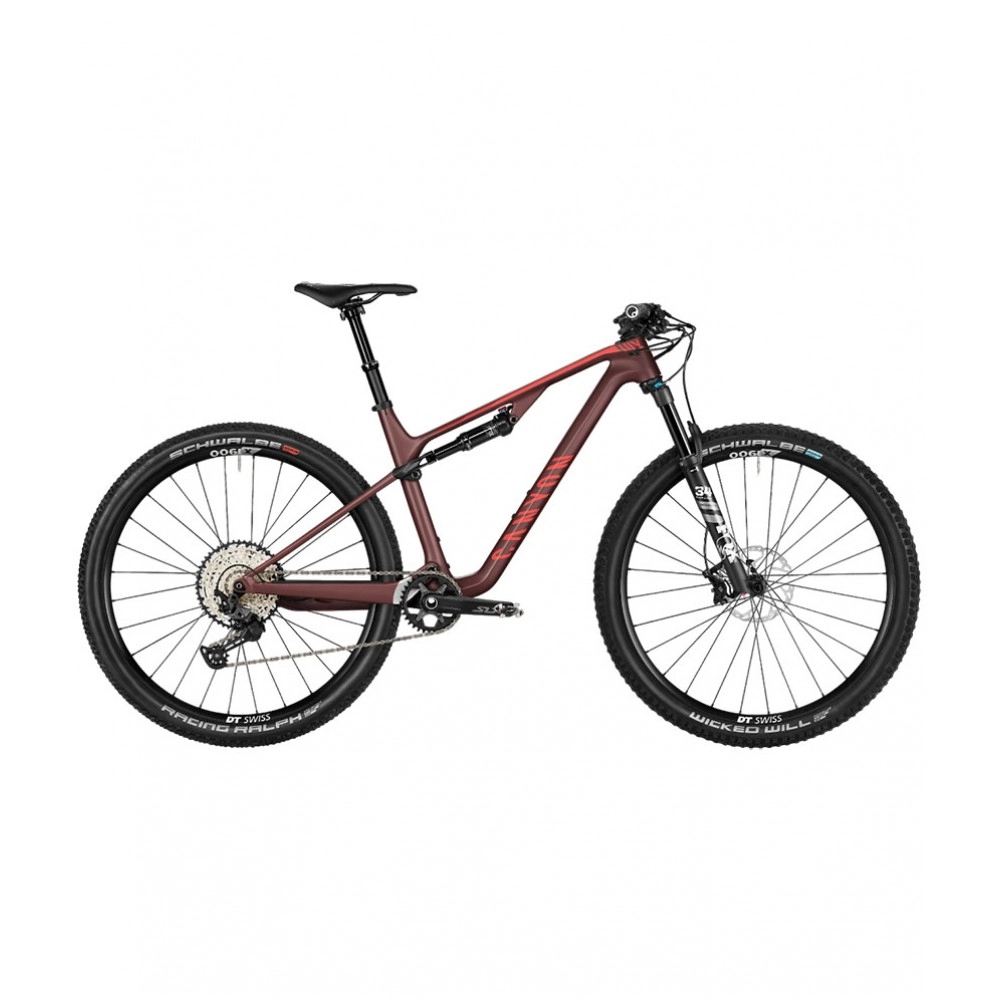

Combining Cross-Country and Downhill, Down-Country is a discipline requiring outstanding climbing efficiency and plenty of descending capability. The Lux Trail CF 6 delivers it all in spades.

SPECIFICATION :
Frame
Lux Trail CF
Lightweight, progressive, full-suspension carbon frame for greater control on rough tracks. Weight: 1,905 g. Rear travel: 110 mm. Wheel size: 29".
Rear Shock
FOX Float DPS Performance Elite 3-Pos Remote
With 3-position compression adjustment: open/trail/firm. With handlebar-mounted lockout. Dimensions: 210 x 55 mm.
Tune: LCLLRL, CMF.
Suspension Fork
FOX 34 Stepcast Performance 3-Pos Remote
120 mm travel. Stanchion diameter: 34 mm. 3-position compression adjustment: open/trail/firm. With handlebar-mounted lockout. Dimensions: 110 x 15 mm.
3 Volume spacer. 44mm Offset.
Rear Derailleur
Shimano SLX, 12-speed
Fast, shockless shifting with HYPERGLIDE+ to deliver your power in all the right places.
Cage length: long
Shift Lever
Shimano SLX, 12-speed
12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
Cassette
Shimano SLX, 12-speed (10-51)
Cassette size: 10-51T. Gear range: 510%.
Crank
Shimano SLX M7100
Shimano SLX. Crank Length: S: 170mm; M-XL: 175mm
Number of chainrings: 1
Bottom bracket
Shimano Pressfit BB71
Bottom bracket bearings that are built to last, no matter what you throw at them.
Bottom bracket standard: PF 89,5/92
Chain
Shimano M7100 12-speed
Disc Brake
Shimano SLX M7100
2-piston brake callipers. With ergonomic design and adjustable levers.
Disc Brake
Shimano SLX M7110
2-piston flat-mount brake callipers. With ergonomic design and adjustable levers.
Brake Rotor
Shimano RT66 160
Size: 160 mm
Brake Rotor
Shimano RT66 180
Size: 180 mm
Wheel
DT Swiss X 1900 Spline
Robust 29-inch aluminium wheelset
Internal rim width: 30 mm
Rear axle dimensions: 12 x 148 mm
Hub Width, Axle Front: 110mm
Tubeless Technology: Taped
Rotor mount: IS 6-bolt
Wheelsize: 29"
Wheel
DT Swiss X 1900 Spline
Robust 29-inch aluminium wheelset
Internal rim width: 30 mm
Rear axle dimensions: 12 x 148 mm
Hub Width, Axle Front: 110mm
Tubeless Technology: Taped
Rotor mount: IS 6-bolt
Wheelsize: 29"
Tyre
Schwalbe Racing Ralph SR TLE EVO 2.35"
Fast-rolling 29-inch cross-country tyre
Width: 2.35"
Tyre
Schwalbe Wicked Will SR TLE EVO 2.4"
29-inch tyres combining the speed of a cross-country tyre with the grip of a trail tyre
Width: 2.4"
Thru Axle
Canyon GP0415-04 Thru Axle 148X12
The Canyon Quixle combines the ease-of-use of a quick release with the stiffness of a through axle. Dimensions: 148 x 12 mm.
Stem
Race Face Ride
Durable, fuss-free alloy stem
Length: 60 mm
Material: 6061 aluminium
Stem Spacer: S: 5, M: 10, L: 15, XL: 20
Fork steer tube diameter: 1 1/8"
Clamping diameter: 35,0 mm
Handlebar
Race Face Ride Riserbar
Robust, reliable alloy bar
Material: 6061 aluminium
Upsweep: 5°
Backsweep: 8°
Clamping diameter: 35,0 mm
Width: 760 mm
Rise: 10 mm
Grips
Ergon GA20
High-grade lock-on grips providing comfort and control in equal measure.
Saddle
Selle Italia SLS Boost FeC
Saddle shaped to support a more aggressive riding position.
Seatpost
FOX Transfer SL Performance Elite
Clamp diameter: 30,9 mm
Material: Aluminium (AL)
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Smallbox
Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
