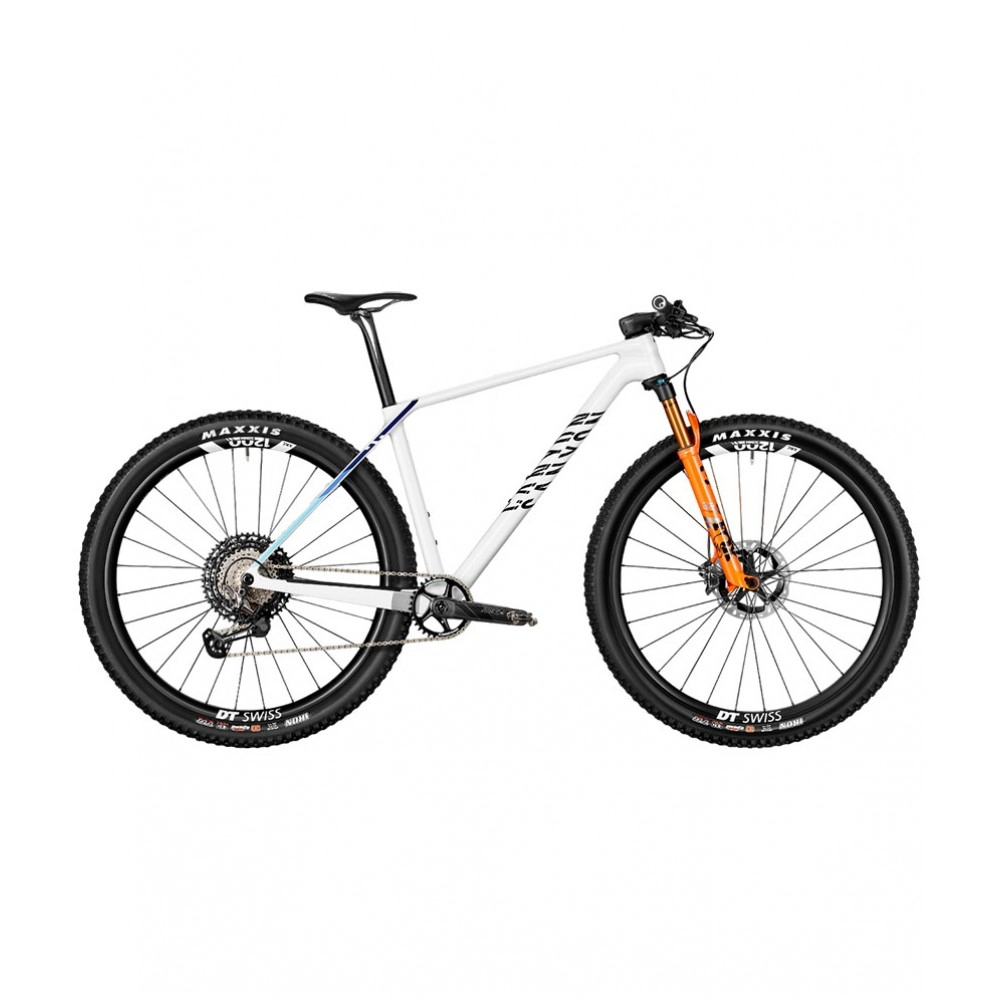

Each Canyon Factory Racing bike is made to for the best racers on the planet to compete at the highest level and the Exceed CFR does just that. With its high-end frame and unparalleled components, it’s right at home pushing the pace on the global stage!

SPECIFICATION :
Frame
Canyon Exceed CFR
The pinnacle of hardtail XC racing. This bike is the fastest, lightest and best of the bunch. Ridden by Canyon Factory Racing riders including Mathieu van der Poel and Emily Batty.
Material: Carbon (CFR)
Suspension Fork
FOX 32 Step-Cast Factory Remote
Built to withstand the demands of top XC riders, the Fox 32 Stepcast forks feature a remote 2 position damper to adjust the ride characteristics without missing a pedal stroke.
Axle dimension: 15x110 mm
Stanchion Diameter: 32 mm
Travel: 100 mm
Fork steer tube diameter: 1 1/8" - 1,5"
Rear Derailleur
Shimano XTR, 12-speed
High-end 12-speed shifting system.
Shift Lever
Shimano XTR, 12-speed
Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Cassette
Shimano XTR CS-M9101 12s 10-51
Number of sprockets: 12
Crank
Race Face Next SL G5 Carbon 34T
Carbon crankset. Crank arm length: S = 170 | M - XL = 175. Chainring size: 34T.
Bottom bracket
Race Face Pressfit Cinch
Race Face's CINCH system provides a great, no fuss, reliable drivetrain with a quiet bottom bracket that will keep you going for years.
Bottom bracket standard: PF 92
Chain
Shimano M9100 12-speed
Disc Brake
Shimano XTR M9100
Clean and compact disc brakes with superb performance and reliable stopping power in all conditions.
Disc Brake
Shimano XTR M9110
Clean and compact disc brakes with superb performance and reliable stopping power in all conditions.
Brake Rotor
Shimano RT-MT900, 180mm
Size: 180 mm
Brake Rotor
Shimano RT-MT900
Size: 160 mm
Wheel
DT Swiss XRC 1200 Spline
Axle dimension: 12x148 mm
Rotor mount: Center Lock
Inner width: 30 mm
Wheelsize: 29"
Wheel
DT Swiss XRC 1200 Spline
Axle dimension: 15x110 mm
Rotor mount: Center Lock
Inner width: 30 mm
Wheelsize: 29"
Tyre
"MAXXIS Ikon Exo 2.35"""
Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions.
Width: 2.35"
Thru Axle
Canyon Quixle Thru Axle
The Canyon Quixle combines the stiffness of a through axle with the ease-of-use of a quick-release. You can quickly remove the rear wheel without tools. The handle discreetly slides into the axle after usage. The Quixle is only combined with the rear wheel.
Axle dimension: 12x148 mm
Cockpit
Canyon CP08 CF
The next level of MTB integration: one-piece carbon cockpit with frontal white Canyon lettering. Dimensions: 740 x 80 mm. Stem angle: -6°. With an aerodynamic design enabling a comfortable, secure grip in a low, aero position.
Grips
Ergon GA20
High-grade lock-on grips providing comfort and control in equal measure.
Saddle
Selle Italia SLR KC Boost
One of the lightest saddles available.
Gender: Male
Seatpost
Canyon VCLS 2.0
Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing.
Clamp diameter: 30,9 mm
Material: Carbon (CF)
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Smallbox
Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
Manuals and Accessories
Quickstart Guide Exceed
Manuals and Accessories
Quickstart Guide Exceed
