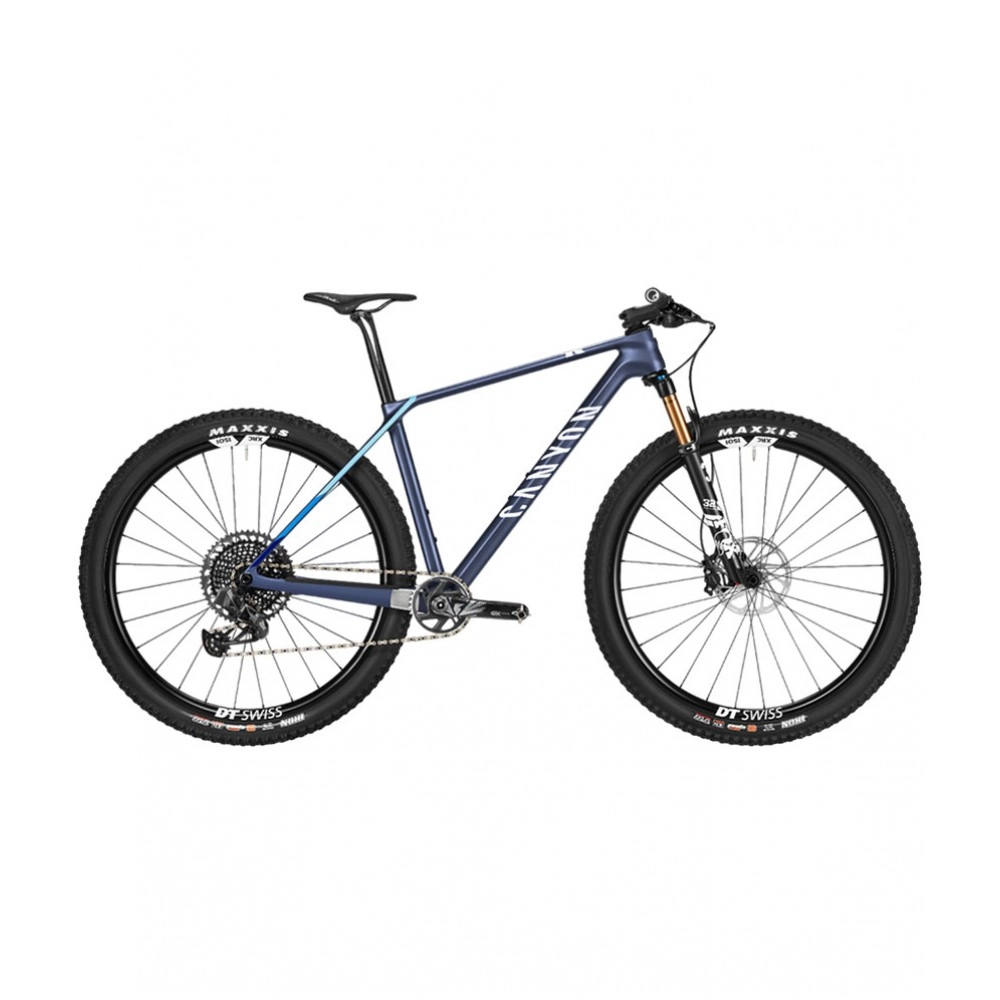

Combining a battle-tested carbon frame with premium components and pinpoint handling, the Exceed CF SLX holds nothing back.

SPECIFICATION :
Frame
Canyon Exceed CF SLX
The Exceed is our hardtail weapon of choice for XC riders and racers. 29 inch wheels, 100mm forks for peak performance between the tapes or on the trails.
Axle dimension: 12x148 mm
Material: Carbon (CF)
Suspension Fork
FOX 32 Step-Cast Factory Remote
Axle dimension: 15x110 mm
Stanchion Diameter: 32 mm
Travel: 100 mm
Fork steer tube diameter: 1 1/8" - 1,5"
Battery
SRAM eTap Powerpack 1BY
Removable battery for wireless eTap derailleurs.
Charge time: less than 60 minutes.
Rear Derailleur
SRAM GX Eagle AXS 12s
Next-gen wireless 1x12 groupset. App-configurable.
Shift Lever
SRAM GX Eagle AXS Controller
Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy.
Cassette
SRAM XG Eagle 10-52
All the range you need to climb the biggest mountains, courtesy of SRAM's 10-52, 12-speed cassette.
Crank
SRAM GX Eagle Carbon DUB 34T
Light and strong carbon crankset with 175mm cranks and 34 tooth chainring.
Number of chainrings: 1
Bottom bracket
SRAM Pressfit DUB
No noise, no fuss bottom bracket from SRAM that will keep running smoothly for years.
Bottom bracket standard: PF 92
Chain
SRAM GX Eagle 12s
Strong and sturdy 12 speed chain with SRAM's easy to use powerlink.
Disc Brake
SRAM Matchmaker Clamp
SRAM's matchmaker clamp keeps things clean for minimal distractions.
Disc Brake
SRAM Level TLM
From the lever to the caliper SRAM's Level brakes give you all day, never quit performance.
Disc Brake
SRAM Level TLM
From the lever to the caliper SRAM's Level brakes give you all day, never quit performance.
Brake Rotor
SRAM Centerline, 160mm
Diameter: 160 mm.
Brake Rotor
SRAM Centerline, 180mm
Diameter: 180 mm.
Wheel
DT Swiss XRC 1501 XD
Axle dimension: 12x148 mm
Rotor mount: IS 6-bolt
Inner width: 30 mm
Wheelsize: 29"
Wheel
DT Swiss XRC 1501 Spline
Axle dimension: 15x110 mm
Rotor mount: IS 6-bolt
Inner width: 30 mm
Wheelsize: 29"
Tyre
"MAXXIS Ikon Exo 2.35"""
Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions.
Width: 2.35"
Thru Axle
Canyon Quixle Thru Axle
The Canyon Quixle combines the stiffness of a through axle with the ease-of-use of a quick-release. You can quickly remove the rear wheel without tools. The handle discreetly slides into the axle after usage. The Quixle is only combined with the rear wheel.
Axle dimension: 12x148 mm
Stem
Canyon V14
Fork steer tube diameter: 1 1/8"
Handlebar
Canyon H21 Carbon Flatbar
Material: Carbon
Rise: 5 mm
Grips
Ergon GA20
High-grade lock-on grips providing comfort and control in equal measure.
Saddle
Selle Italia SLR Boost
Saddle shaped to support a more aggressive riding position.
Gender: Male
Seatpost
Canyon VCLS 2.0
Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing.
Clamp diameter: 30,9 mm
Material: Carbon (CF)
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Instruction SRAM ETP
Manuals and Accessories
Canyon Smallbox
Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste
Manuals and Accessories
Quickstart Guide Exceed
Manuals and Accessories
Quickstart Guide Exceed
