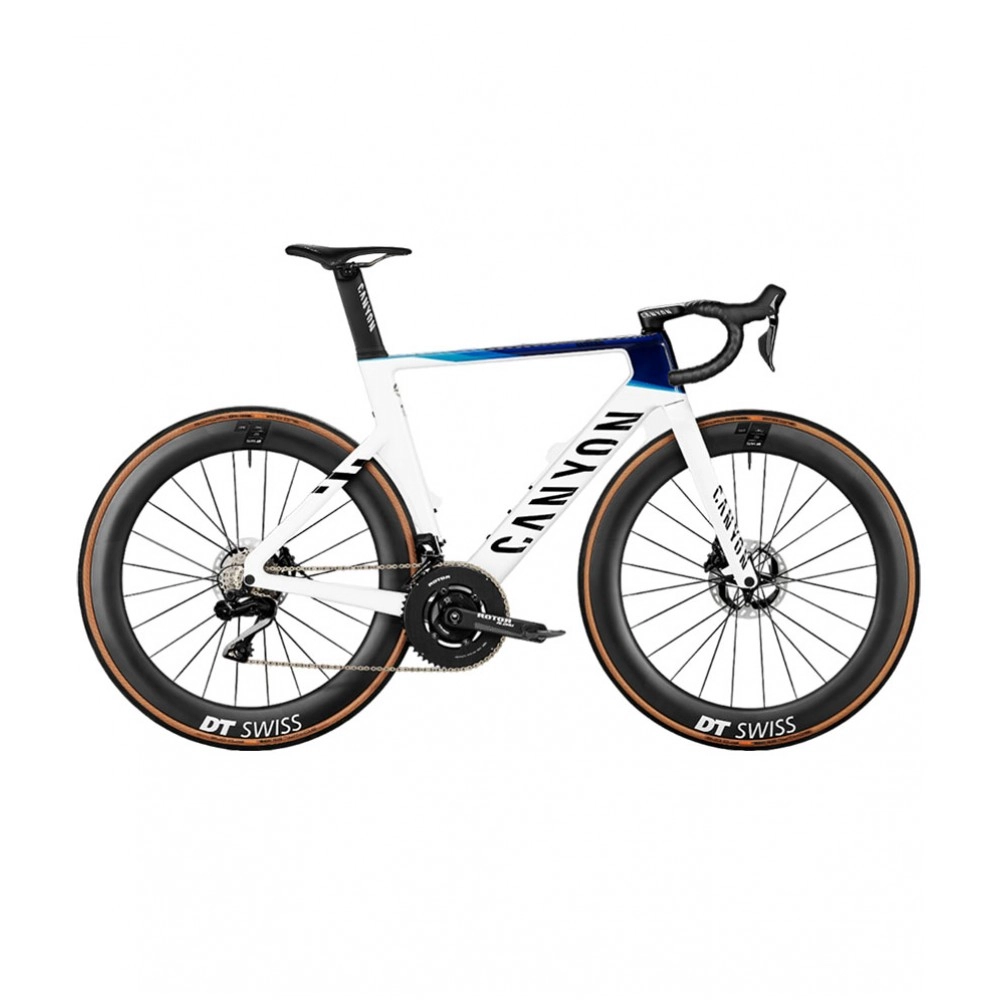

The best engineers. The finest materials and parts. Tested by the world’s best riders. Sculpted in collaboration with F1 aero experts Swiss Side, the Aeroad CFR Disc Di2 is a high-performance road race bike at the cutting edge of what’s possible with modern engineering and technology. The quickest road bike you’ll have ever ridden.

SPECIFICATION :
Frame
Aeroad CFR Disc
Canyon Factory Racing R065 aero carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard. Weight: 915 g
Fork
Canyon FK0060 CF Disc
All-new design, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g
Rear Derailleur
Shimano Dura-Ace Di2 R9250,12-speed
Pro-level wireless derailleur providing Shimano’s fastest-ever shifting.
Front Derailleur
Shimano Dura-Ace Di2 R9250
Semi-wireless derailleur with world-class performance. 45% faster shifting. 33% smaller frontal area.
Superlight: only 99 g
Attachment type: braze-on
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-30
The latest generation of superlight Shimano cassettes.
Gear range: 11-30 T
Crank
Rotor ALDHU24 Inspider Aero
Rotor ALDHU24 crankset with INspider powermeter
Number of chainrings: 2
Chainring size: 52/36
Bottom bracket
Shimano Pressfit BB92
Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology.
Weight: 54 g
Chain
Shimano CN-M9100 12s
The latest generation of Shimano chains. With SIL-TEC treatment for extended durability.
Brake
Shimano Flat Mount Adapter +20mm
Adapter that makes it possible to mount 160 mm brake rotors.
Shift-/ Brake Lever
Shimano Dura-Ace Di2 R9270, 12-speed
Number of pistons: 2
Shift-/ Brake Lever
Shimano Dura-Ace Di2 R9270, 12-speed
Number of pistons: 2
Brake Rotor
Shimano XTR RT-MT900
Premium XTR rotor with superb stopping power for the most aggressive riding, with Ice Freeza tech for superior heat management.
Superlight: 108 g
Disc Mount: Centerlock
Size: 160 mm
Wheel
DT Swiss ARC 1100 Dicut
Front wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings.
Tubeless-ready
Inner width: 20mm
Weight: 776g
Rotor mount: Center Lock
Wheel
DT Swiss ARC 1100 Dicut
Rear wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready.
Rim depth: 62 mm
Inner width: 20 mm
Driver: Shimano 11-speed road
Weight: 900 g
Rotor mount: Center Lock
Rim height: 62 mm
Wheelsize: 28"
Tyre
Schwalbe Pro One, 25mm
High-end road tyre that combines suppleness, speed, and control at the highest level.
Tech: tubeless-ready, v-guard puncture protection
Compound: Addix Race
Tyre
Schwalbe Pro One, 28mm
High-end road tyre that combines suppleness, speed, and control at the highest level.
Tech: tubeless-ready, v-guard puncture protection
Compound: Addix Race
Thru Axle
DT Swiss through axle without lever
Aluminium construction.
Thread pitch: 1.75 mm
Axle dimension: 12x100 mm
Thru Axle
DT Swiss through axle with lever
Aluminium construction.
Thread pitch: 1.75 mm
Axle dimension: 12x142 mm
Cockpit
Canyon CP0018 Aerocockpit
Aero design, reinforced carbon walls for added stiffness and improved durability.
Easy width adjustment: +/-20 mm
Cut-free height adjustment: 15 mm
Weight: 440 g
Material: Carbon (CF)
Handlebar Tape
Canyon Ergospeed Gel
Bar tape with EVA foam and elastomer gel mix for optimal comfort.
Color: black
Saddle
Selle Italia SLR Boost Superflow Kit Carbonio
Superlight saddle with carbon rails, modern short-nose design and unisex ergonomics.
Width: 130mm (S)
Rail material: carbon (oval)
Weight: 122 g
Gender: Unisex
Seatpost
Canyon SP0046 Aero Seatpost
Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Clamp diameter: 27,2 mm
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Smallbox
