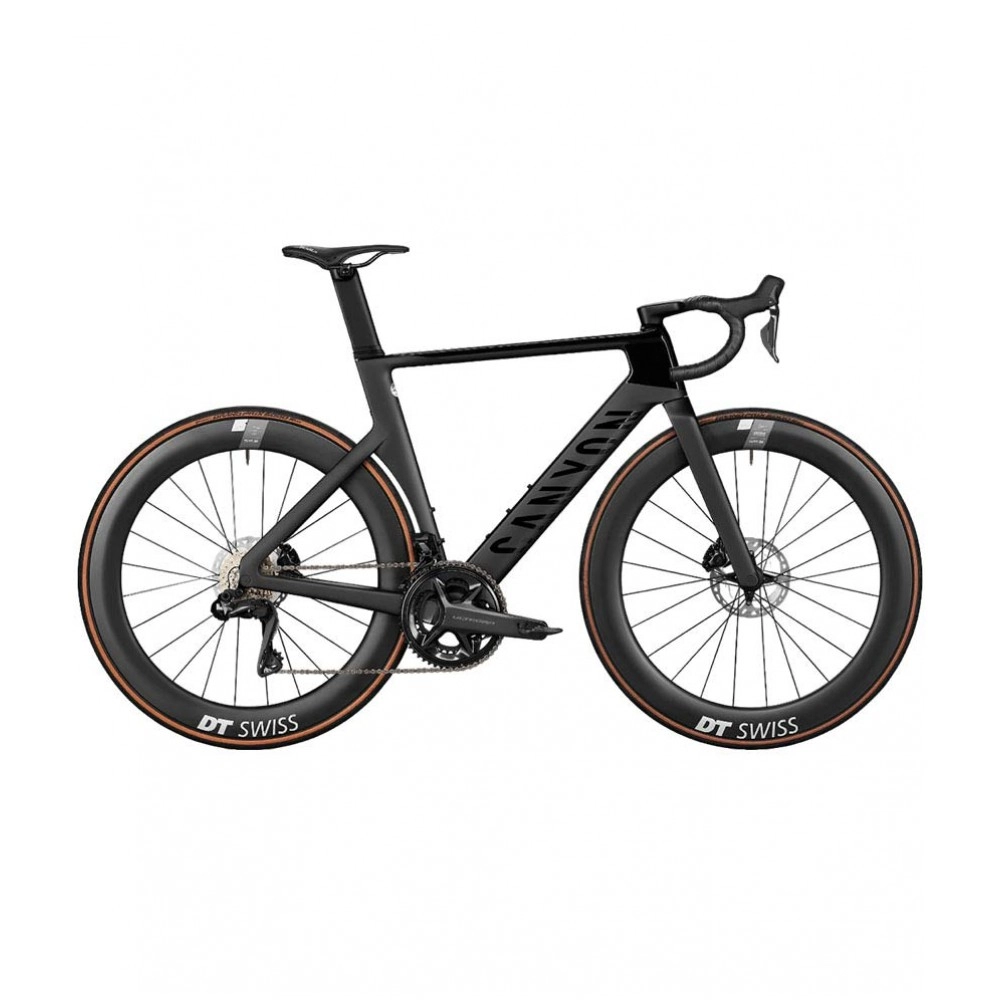

Every inch of this bike is designed to provide aero gains across the board – wind tunnel-optimised tube profiles, superlight DT Swiss wheelset sculpted by F1 aero experts Swiss Side, and complete integration of all cables for reduced drag. The Aeroad CF SLX 8 Disc Di2 is our interpretation of a cutting-edge aero race bike.

SPECIFICATION :
Frame
Canyon Aeroad CF SLX Disc
Axle dimension: 12x142 mm
Material: Carbon (CF)
Fork
Canyon FK0060 CF Disc
A new design enables superior cable integration. Inspected with computer tomography scanning.
Material: carbon
Axle dimensions: 12 x 100 mm
Brake mount: flat mount
Wheel size: 700C
Fork steer tube diameter: 1 1/8"
Material: Carbon (CF)
Rear Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Electronic 12-speed rear derailleur. 58% faster shifting.
Maximum cassette size: 34T
Front Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Electronic front derailleur for 2x12 shifting setups.
Maximum chainring size: 50-52T
Mounting interface: braze-on
Cassette
Shimano Ultegra R8100,12-speed, 11-30T
Number of sprockets: 12
Crank
Shimano Ultegra R8100 4iiii Precision Powermeter
Number of chainrings: 2
Bottom bracket
Shimano Pressfit BB72
Pressfit BB86 road standard, compatible with 24 mm axles featuring Hollowtech 2 technology.
Weight: 69 g
Chain
Shimano CN-M8100 12s
Chain featuring SIL-TEC ultra-low friction surface treatment on inner plate for precise shifting and improved durability. Extended inner plates also improve chain engagement and retention. With quick link for fast fitting and assembly.
Brake
Shimano Flat Mount Adapter +20mm
Adapter that makes it possible to mount 160 mm brake rotors.
Shift-/ Brake Lever
Shimano Ultegra Di2 R8170 12s
Right-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation.
Shift-/ Brake Lever
Shimano Ultegra Di2 R8170, 12-speed
Number of pistons: 2
Brake Rotor
Shimano MT800
Light, high-grade centrelock brake rotor. Featuring Ice Freeza technology for superior heat management, creating consistent braking performance and increasing brake pad life.
Weight: 133 g
Wheel
DT Swiss ARC 1400 Dicut
Front wheel with Aero+ technology for stability and low drag. Tubeless-ready.
Rim depth: 62 mm
Inner width: 20 mm
Weight: 817 g
Wheel
DT Swiss ARC 1400 Dicut
Rear wheel with Aero+ technology for stability and low drag. Tubeless-ready. Rim depth: 62 mm, inner width: 20 mm, driver: Shimano 11-speed road, weight: 936 g
Tyre
Continental Grand Prix 5000 TL, 25mm
High-performance race tyre. Compound: BlackChili. Weight: 255 g, TPI: 3/330, with Vectran breaker for enhanced puncture protection.
Width: 25mm
Tyre
Continental GP 5000s TR, 28 mm
High-performance race tyre. Compound: BlackChili. Weight: 275 g, TPI: 3/330, with Vectran breaker for enhanced puncture protection
Width: 28mm
Thru Axle
DT Swiss through axle without lever
Aluminium construction.
Thread pitch: 1.75 mm
Axle dimension: 12x100 mm
Thru Axle
DT Swiss through axle with lever
Aluminium construction.
Thread pitch: 1.75 mm
Axle dimension: 12x142 mm
Cockpit
Canyon CP0018 Aerocockpit
Aero design, reinforced carbon walls for added stiffness and improved durability.
Easy width adjustment: +/-20 mm
Cut-free height adjustment: 15 mm
Weight: 440 g
Material: Carbon (CF)
Handlebar Tape
Canyon Ergospeed Gel
Bar tape with EVA foam and elastomer gel mix for optimal comfort.
Color: black
Saddle
Selle Italia SLR Boost Superflow S manganese
Saddle with modern short-nose design and unisex ergonomics.
Width: 130 mm (S)
Rail material: manganese
Weight: 208 g
Seatpost
Canyon SP0046 Aero Seatpost
Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Clamp diameter: 27,2 mm
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Smallbox
