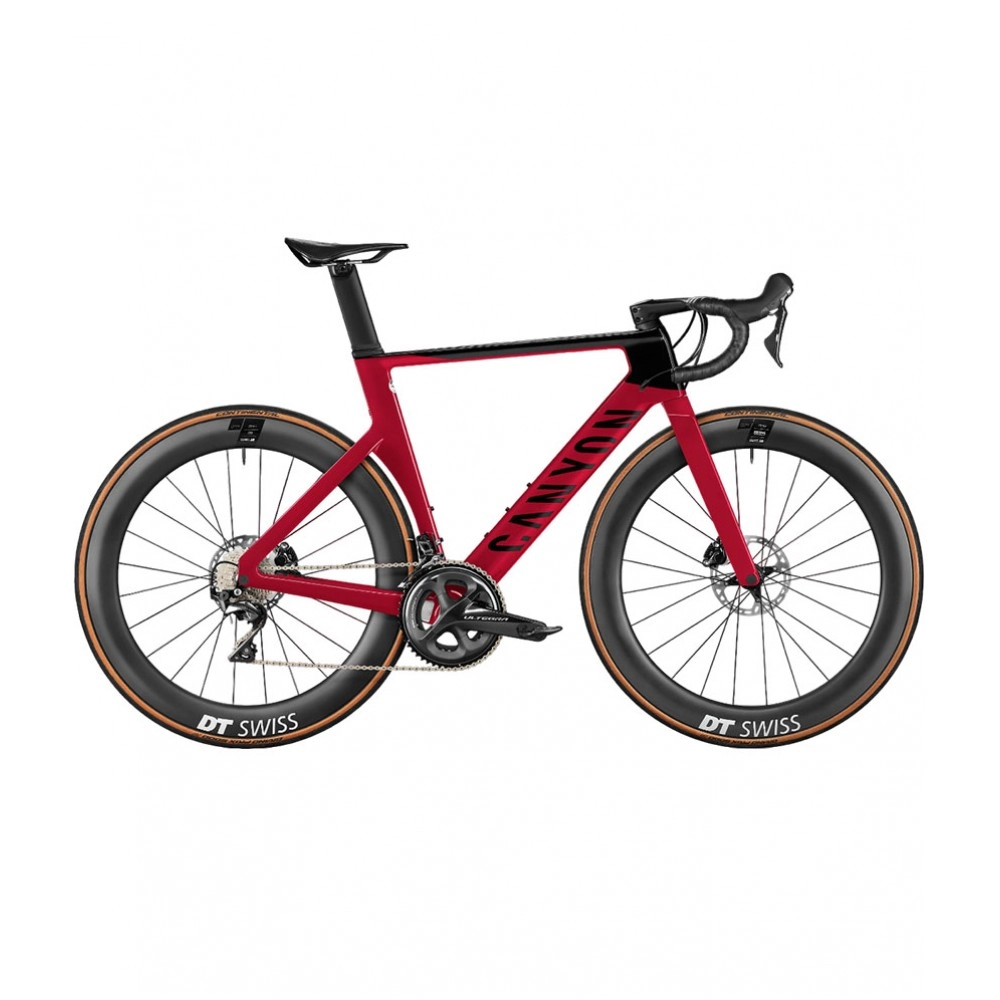

The Aeroad CF SL frame takes the world-class design of the flagship Aeroad CFR and makes it available at an incredibly accessible price point. Uniting advanced aerodynamics, razor-sharp handling, and improved comfort levels, this is a truly uncompromising all-rounder.

SPECIFICATION :
Frame
Aeroad CF SL
Axle dimension: 12x142 mm
Material: Carbon (CF)
Fork
Fork for R082 Aeroad 700c
Aerodynamically optimised design, compatible with conventional aero cockpits. Tested and approved with computer tomography scanning.
Material: carbon
Steerer fork diameter: 1 1/4"
Axle dimensions: 12 x 100 mm
Brake mount: flat mount
Wheel sizes: 700C/650b
Fork steer tube diameter: 1 1/4"
Material: Carbon (CF)
Rear Derailleur
Shimano Ultegra R8000 SS
11-speed, short cage design.
Max. cassette size: 30T
Shadow Shifting technology
Weight: 198 g
Front Derailleur
Shimano Ultegra R8000
Front derailleur for 2x11 shifting systems.
Mount: braze-on
Avg. weight: 92 g
Cassette
Shimano Ultegra R8000 11-30 11s
Advanced mix of aluminium, carbon and steel reduces weight and increases durability.
Gear range: 11-30T
Weight: 269 g
Crank
Shimano Ultegra R8000
Weight: 690 g
Number of chainrings: 2
Bottom bracket
Token Ninja Lite BB4124
Thread-Fit Technology reduces chances of bearing misalignment. BB86 Road standard, compatible with 24 mm axles.
Weight: 83 g
Chain
Shimano HG701 11-speed
High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Shift-/ Brake Lever
Shimano Ultegra R8020 2s
Left shift/brake lever with enhanced ergonomics for precise shifting and braking in all conditions. With increased reach adjustment range.
Shift-/ Brake Lever
Shimano Ultegra R8020 11s
Right shift/brake lever with enhanced ergonomics for precise shifting and braking in all conditions. With increased reach adjustment range.
Brake Rotor
Shimano MT800
Light, high-grade centrelock brake rotor. Featuring Ice Freeza technology for superior heat management, creating consistent braking performance and increasing brake pad life.
Weight: 133 g
Wheel
DT Swiss ARC 1600
Front wheel with Aero+ technology for stability and low drag. Tubeless-ready.
Rim depth: 62 mm
Inner width: 20 mm
Weight: 837 g
Wheel
DT Swiss ARC 1600 Dicut
Rim height: 62 mm
Rotor mount: Center Lock
Rim height: 62 mm
Wheelsize: 28"
Tyre
Continental Grand Prix 5000 25mm
High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. Tanwall sidewall.
TPI: 330
Weight: 225 g
Tyre
Continental Grand Prix 5000, 28 mm, skinwall
High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. Tanwall sidewall.
TPI: 330
Weight: 240 g
Thru Axle
DT Swiss through axle without lever
Aluminium construction.
Thread pitch: 1.75 mm
Axle dimension: 12x100 mm
Thru Axle
DT Swiss through axle with lever
Aluminium construction.
Thread pitch: 1.75 mm
Axle dimension: 12x142 mm
Cockpit
Canyon H36 Aerocockpit
Material: Carbon (CF)
Handlebar Tape
Canyon Ergospeed Gel
Bar tape with EVA foam and elastomer gel mix for optimal comfort.
Color: black
Saddle
Selle Italia Model X
Saddle with central cut-out and flexible wings for maximum comfort. Featuring durable Soft-Tek cover for maximum durability and scratch resistance.
Rail material: Manganese
Gender: Male
Seatpost
Canyon SP0046 Aero Seatpost
Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Clamp diameter: 27,2 mm
Light
Reflector Set
Pedals
None included
Manuals and Accessories
Canyon Bag
Storage box for tools and replacement parts.
Manuals and Accessories
Canyon Note about Cockpit Clamp H31
Manuals and Accessories
Canyon Smallbox
