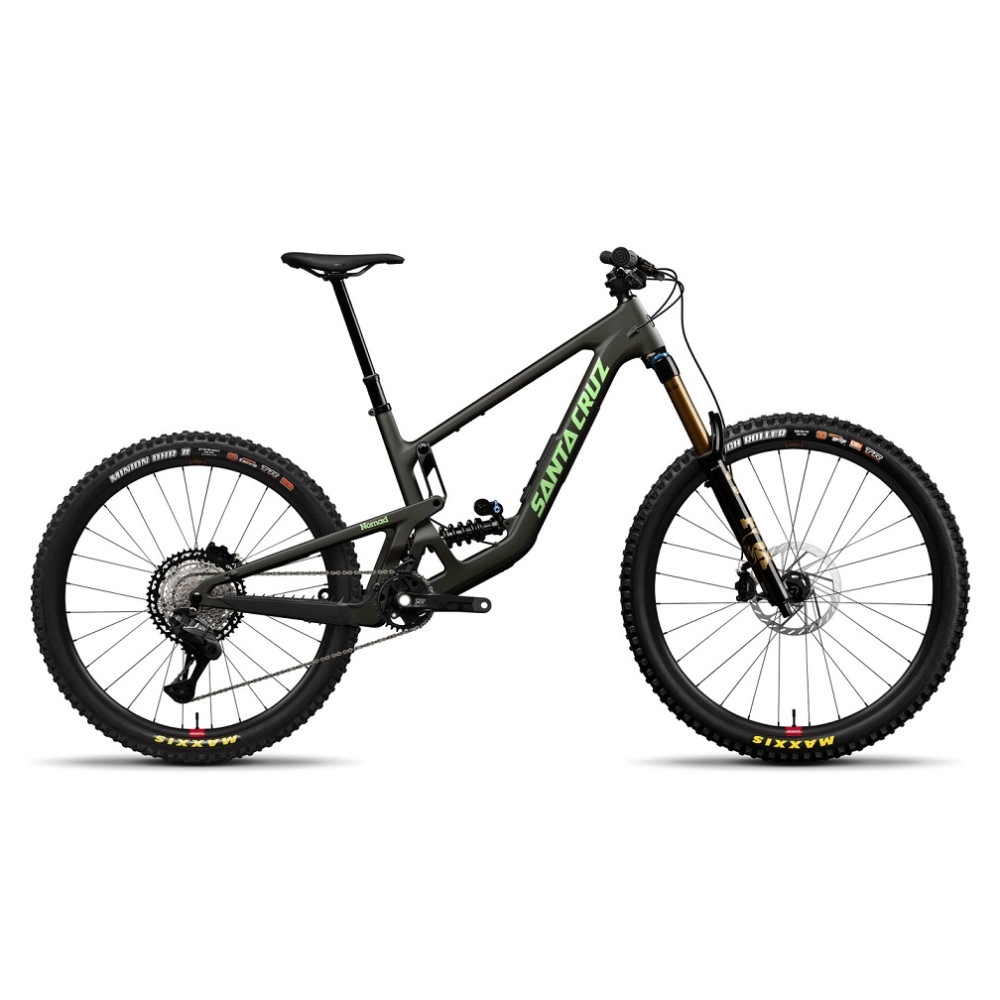

2027 Santa Cruz Nomad XT Di2 Coil Mountain Bike
USD 4,680.00
Viewed 28 times
Categories
Cart
Account
Search
Recent View
All Categories
×
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Product Description
The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.
The Santa Cruz Nomad XT Di2 Coil is engineered for riders who push hard on steep terrain, big lines and long, technical descents. With its premium Carbon CC frame, Factory level suspension and Shimano’s latest XT M8250 Di2 drivetrain, this build delivers the reliability, responsiveness and downhill confidence the Nomad platform is known for.
Key Features
Carbon CC Frame
Fox 38 Float Factory Fork
Fox DHX2 Factory Coil Shock
Shimano XT M8250 Di2 Drivetrain
Bike Specification
Frame
| Material | Carbon CC |
| Frame | Carbon CC MX 170mm Travel VPP™ |
| Travel | 170mm |
| Weight | 34.54 lbs / 15.67 kg |
| Wheel Size | MX |
Suspension
| Fork | Fox 38 Float Factory, Grip X2, 170mm |
| Shock | Fox DHX2 Factory (S: 400lb, M: 450lb, L: 500lb, XL-XXL: 550lb) |
| Shock Length | 230mm |
| Shock Stroke | 65mm |
| Suspension System | VPP™ |
| Rear Travel | 170mm |
| Recommended Sag | 30% |
Drivetrain
| Bottom Bracket | Shimano MT801 Threaded |
| Cassette | Shimano XT M8200, 10-51t |
| Chain | Shimano XT M8100, 12spd |
| Chainguide | OneUp Chainguide |
| Crankset | Shimano XT M8200, 32t (S: 165mm, M-XXL: 170mm) |
| Rear Derailleur | Shimano XT M8250 Di2, SGS, 12spd |
| Shifter | Shimano Deore XT M8250 + Wolf Tooth Shiftmount Adapter |
| Chainline | 55mm |
| UDH Compatible | Yes |
Brakes
| Brakes | SRAM Maven Silver |
| Front Rotor | SRAM HS2 200mm |
| Rear Rotor | SRAM HS2 200mm |
| Max Rotor Size | 223mm |
| Rear Brake Mount | Postmount 200mm |
Cockpit
| Handlebar | OneUp Carbon Bar (760–800mm depending size) |
| Stem | OneUp Enduro Stem 42mm |
| Grips | Santa Cruz House Grips |
| Headset | Cane Creek 50 IS Integrated (IS41/52) |
| Seatpost | OneUp Dropper (150–240mm depending size) |
| Saddle | WTB Silverado Medium Fusion |
| Seat Clamp | 36.4mm |
| Seat Post Diameter | 31.6mm |
Wheels
| Front Rim | Reserve 30|SL AL 6069 |
| Rear Rim | Reserve 30|HD AL 6069 |
| Front Hub | DT Swiss 350 15x110 6-Bolt 28h |
| Rear Hub | DT Swiss 350 DEG DF 12x148 MicroSpline 6-Bolt 32h |
| Front Tire | Maxxis High Roller 29"x2.4" 3C MaxxGrip EXO+ |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4" 3C MaxxTerra Double Down |
| Valves | Reserve Fillmore Valves |
Specifications
| Bottom Bracket Shell | 73mm Threaded |
| Fork Axle to Crown | 588mm |
| Fork Compatibility | 170–180mm |
| Fork Offset | 44mm |
| Headset | Integrated (IS41/52) |
| Max Chainring | 36t |
| Max Rotor Size | 223mm |
| Rear Spacing | 148mm |
| Rear Travel | 170mm |
| Shock Stroke | 65mm |
| Shock Bushing | 30x8 (Front & Rear) |
| Downtube Storage | Glovebox |
| Water Bottle Mounts | 1 |
