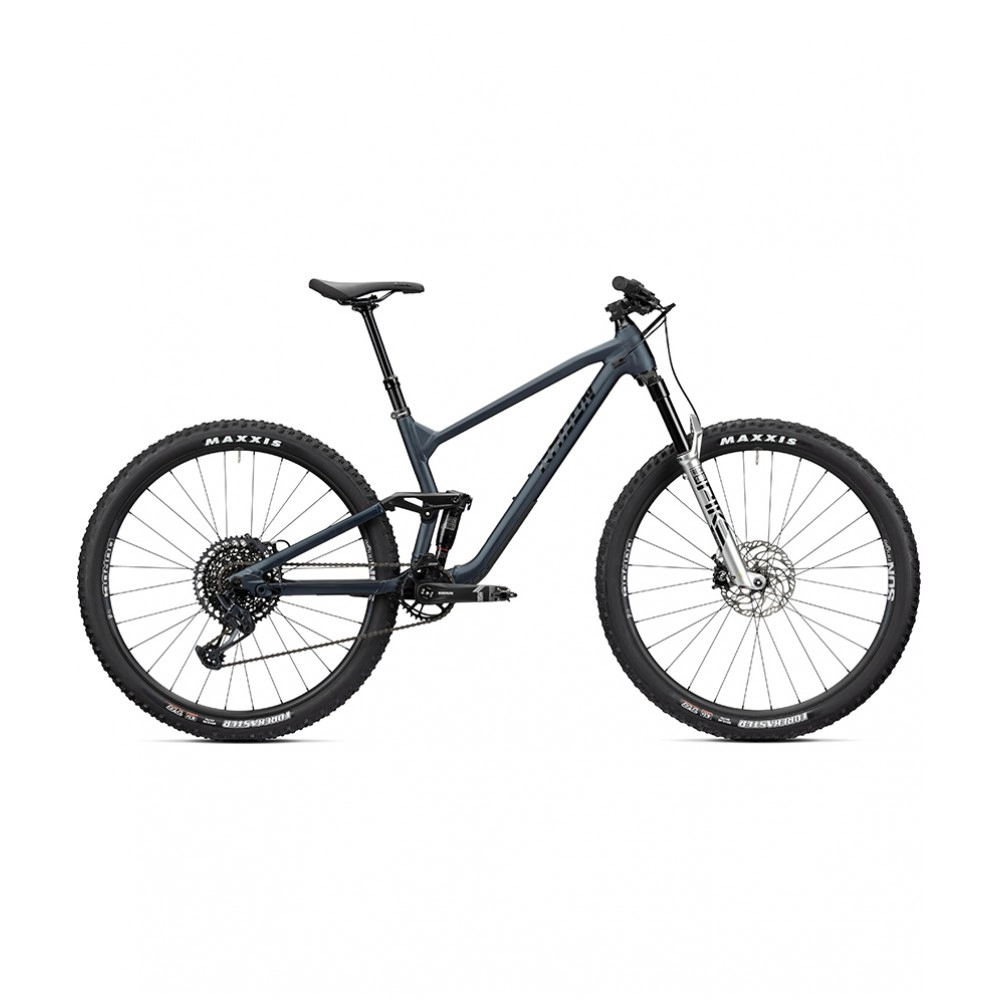

2023 RADON SKEEN TRAIL AL 8.0 MOUNTAIN BIKE

Our SKEEN TRAIL AL 8.0 is an absolute equipment miracle and also comes with a high-end aluminium frame. This is the heart of the bike and has almost identical geometry values as its brother in carbon, which has already won many tests, awards and recommendations.

SPECIFICATION
Frame
SKEEN TRAIL AL 29, Maximale Reifenbreite: 2.4", Schaltauge: #10240
Frame material
aluminium
Wheel size
29"
Fork
RockShox Pike Ultimate, Charger 3 RC2, DebonAir+, Boost, Nachlauf: 44mm
Rear Shock
RockShox Deluxe Select+, DebonAir+ (Einbaumaß: 185 x 47.5mm, Buchsenmaß: oben: Trunnion, unten: 8 x 22,2mm)
Travel
130mm / 120mm
Brakes
Magura MT Trail Custom
Brake discs
Magura MDR-C, 180/180mm, 6-bolt
Headset
VP, ZS44/ZS56
Stem
Race Face Æffect R, Ø35mm (16": 60mm, 18": 60mm, 20": 60mm, 22": 70mm)
Handlebar
Race Face Æffect R, 35 x 780mm, 20mm rise
Bar grips
SDG Thrice
Saddle
SDG Bel Air V3
Seatpost
Radon Competition Dropper, 31.6mm (16": 125mm Hub, 18": 150mm Hub, 20": 150mm Hub, 22": 150mm Hub)
Crankset
SRAM X1 1000 DUB, 32T, Boost, 175mm
Bottom bracket
SRAM DUB, Pressfit, 92mm
Rear derailleur
SRAM GX Eagle, 12-speed
Gear shifters
SRAM NX Eagle, Shiftmix
Cassette
SRAM GX Eagle XG-1275, 10-52
Chain
Sram SX Eagle
Tyres
Maxxis Forecaster, Dual, Exo Protection, TR, 29" x 2.35"
Wheelset
SUNringlé Düroc 35 Expert, 31mm, 110/148mm
Pedals
Not included
Maximum total weight allowed
115 kg (body weight + bike + equipment)
Weight
Starting from 14,35 kg
